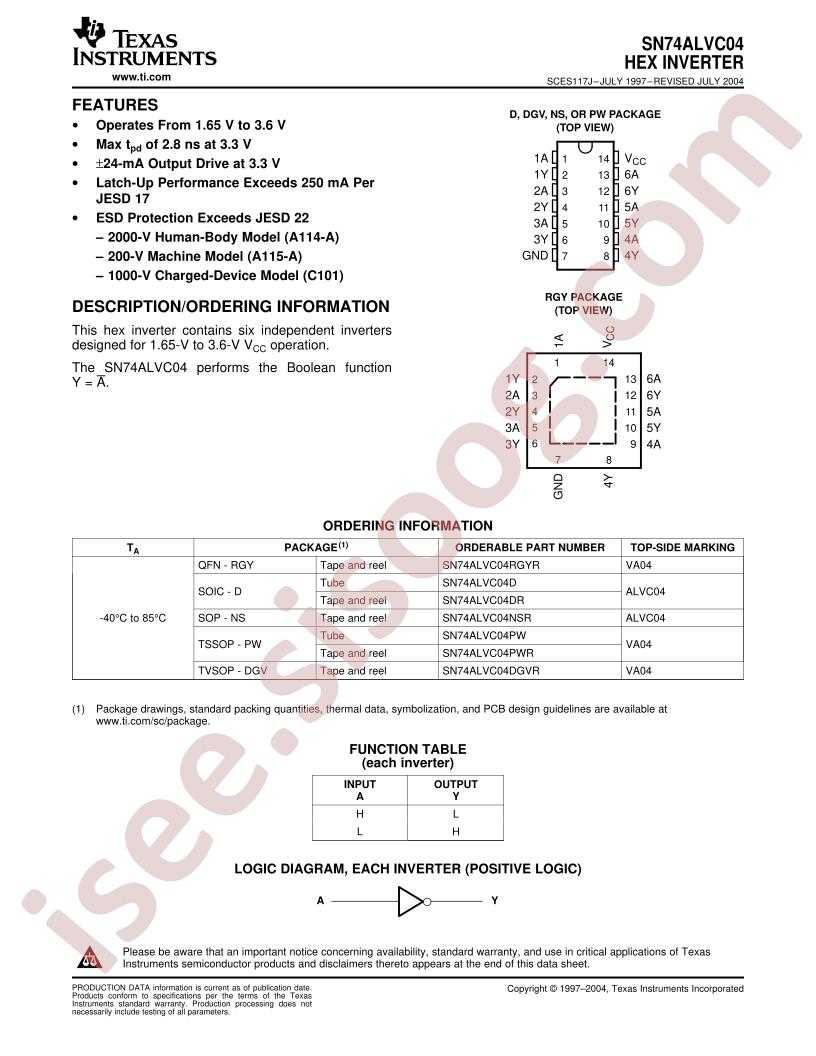

SN74ALVC04D دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
SN74ALVC04D
|
|
حجم فایل
|
345.326
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
11
|
مشخصات فنی
-
RoHS:
true
-
Series:
74ALVC
-
Category:
Logic ICs/Inverters
-
Datasheet:
Texas Instruments SN74ALVC04D
-
Sink Current:
24mA
-
Source Current:
24mA
-
Number of Inputs:
1
-
Number of Circuits:
6
-
Supply Current (Max):
10uA
-
Low level range (VIL):
0.7V~0.8V
-
Max Propagation Delay:
2.8ns@3.3V,50pF
-
Operating Temperature:
-40°C~+85°C
-
High level range (VIH):
1.7V~2V
-
Supply Voltage(Single):
1.65V~3.6V
-
Package:
SOP-14
-
Manufacturer:
Texas Instruments
-
Part id:
103251
