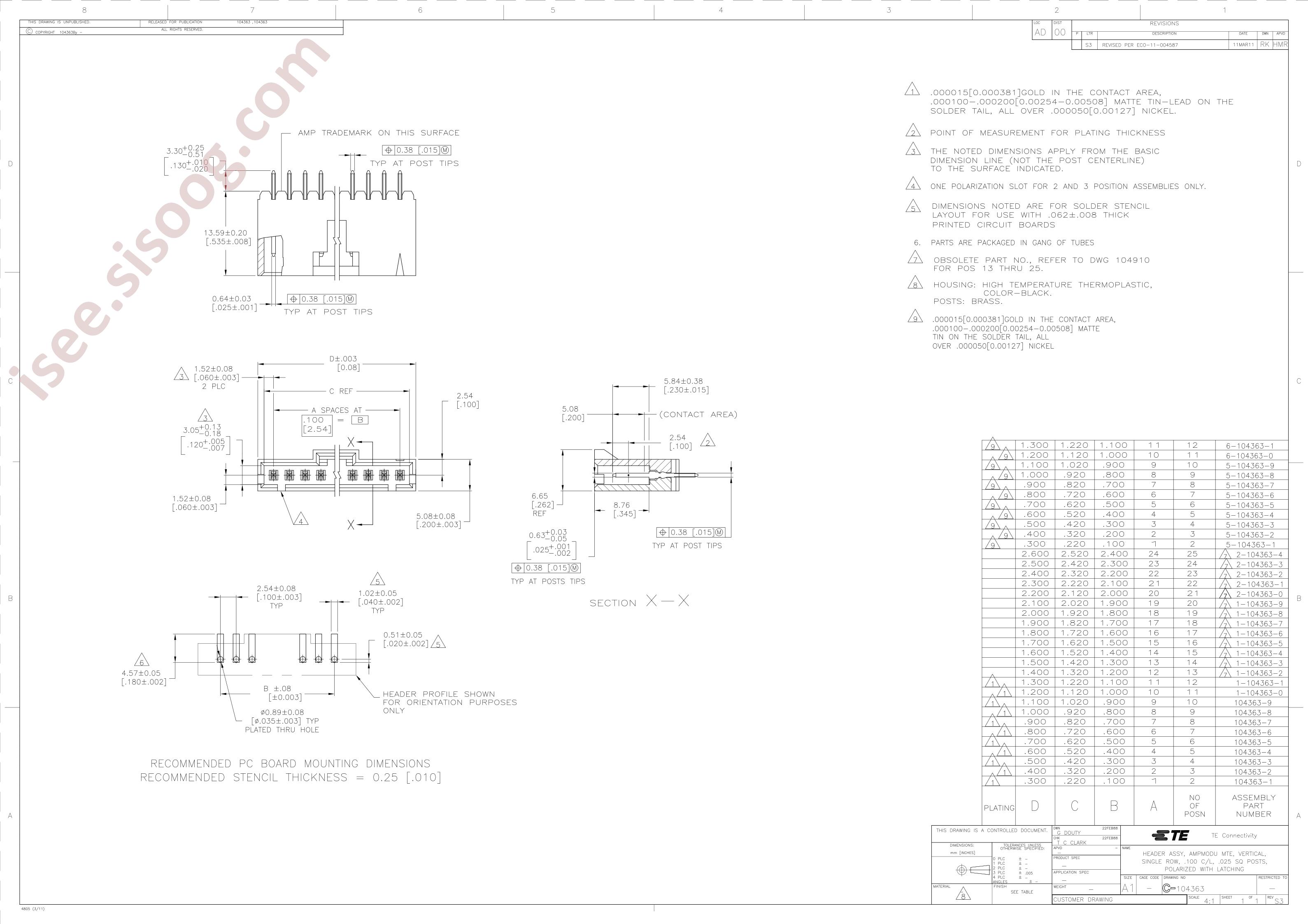

5-104363-7 数据手册
其他文档
5-104363-7 1 pages
技术规格
- RoHS: true
- Pitch: 2.54mm
- Category: Connectors/Wire To Board / Wire To Wire Connector
- Datasheet: TE Connectivity 5-104363-7
- Row Spacing: -
- Mounting Style: Straight
- Number of Rows: 1
- Pins Structure: 1x8P
- Contact Plating: Tin
- Contact Material: Brass
- Reference Series: -
- Current Rating (Max): 3A
- Number of PINs Per Row: 8
- Operating Temperature Range: 65°C~+105°C
- Package: Plugin,P=2.54mm
- Manufacturer: TE Connectivity
- Part id: 514471
