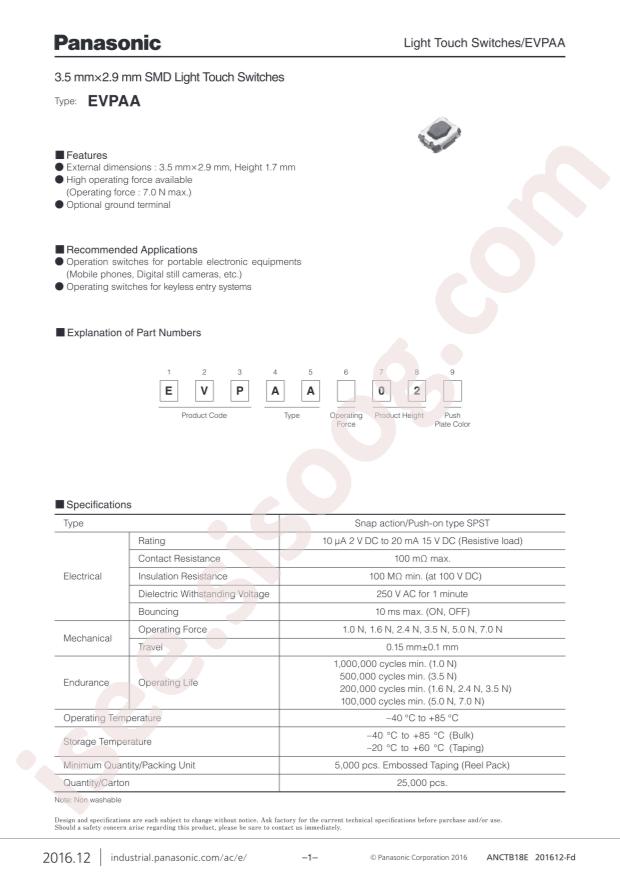

EVPAA002K دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
EVPAA002K
|
|
حجم فایل
|
58.473
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
4
|
مشخصات فنی
-
RoHS:
true
-
Circuit:
SPST
-
Category:
Key/Switch/Tactile Switches
-
Datasheet:
PANASONIC EVPAA002K
-
IP Rating:
-
-
Pin Style:
J pin
-
With Lamp:
-
-
Power Rating:
-
-
Switch Width:
2.9mm
-
Strike Gundam:
Yes
-
Switch Height:
1.7mm
-
Switch Length:
3.5mm
-
Actuator Style:
Rectangle button
-
Mounting Style:
Brick nogging
-
Contact Current:
20mA
-
Mechanical Life:
1000000 times
-
Operating Force:
1N
-
Actuator/Cap Color:
Black
-
Voltage Rating (AC):
-
-
Voltage Rating (DC):
15V
-
Insulation Resistance:
100MΩ
-
Operating Temperature:
-40°C~+85°C
-
Package:
SMD,2.9x3.5mm
-
Manufacturer:
PANASONIC
-
Part id:
598411
