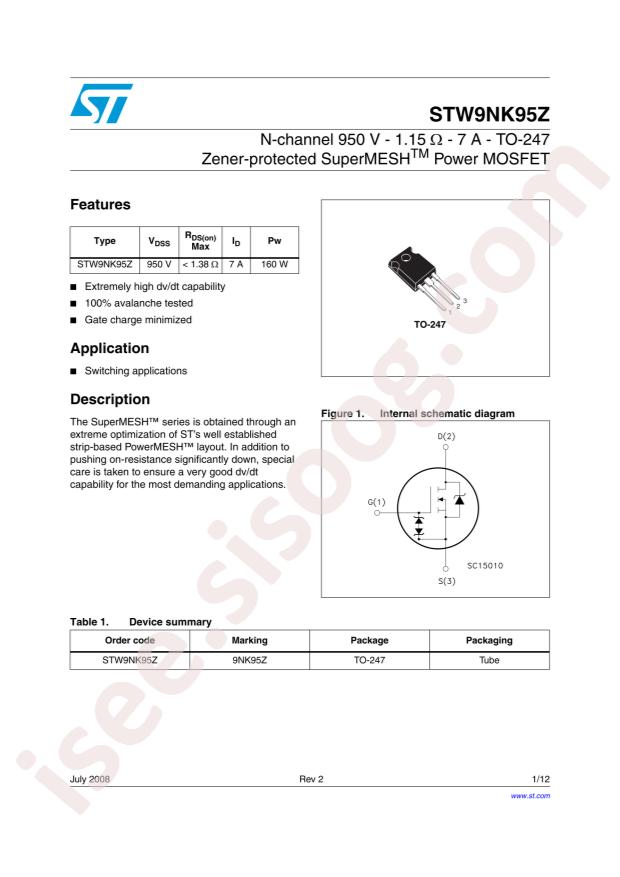

دیتاشیت STW9NK95Z
مشخصات دیتاشیت
| نام دیتاشیت |
STW9NK95Z
|
| حجم فایل |
320.477
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
12
|
مشخصات
-
RoHS:
true
-
Category:
Triode/MOS Tube/Transistor/MOSFETs
-
Datasheet:
STMicroelectronics STW9NK95Z
-
Operating Temperature:
-55°C~+150°C@(Tj)
-
Power Dissipation (Pd):
160W
-
Total Gate Charge (Qg@Vgs):
56nC@10V
-
Drain Source Voltage (Vdss):
950V
-
Input Capacitance (Ciss@Vds):
2256pF@25V
-
Continuous Drain Current (Id):
7A
-
Gate Threshold Voltage (Vgs(th)@Id):
4.5V@100uA
-
Drain Source On Resistance (RDS(on)@Vgs,Id):
1.38Ω@3.6A,10V
-
Package:
TO-247
-
Manufacturer:
STMicroelectronics
-
Part id:
932953
