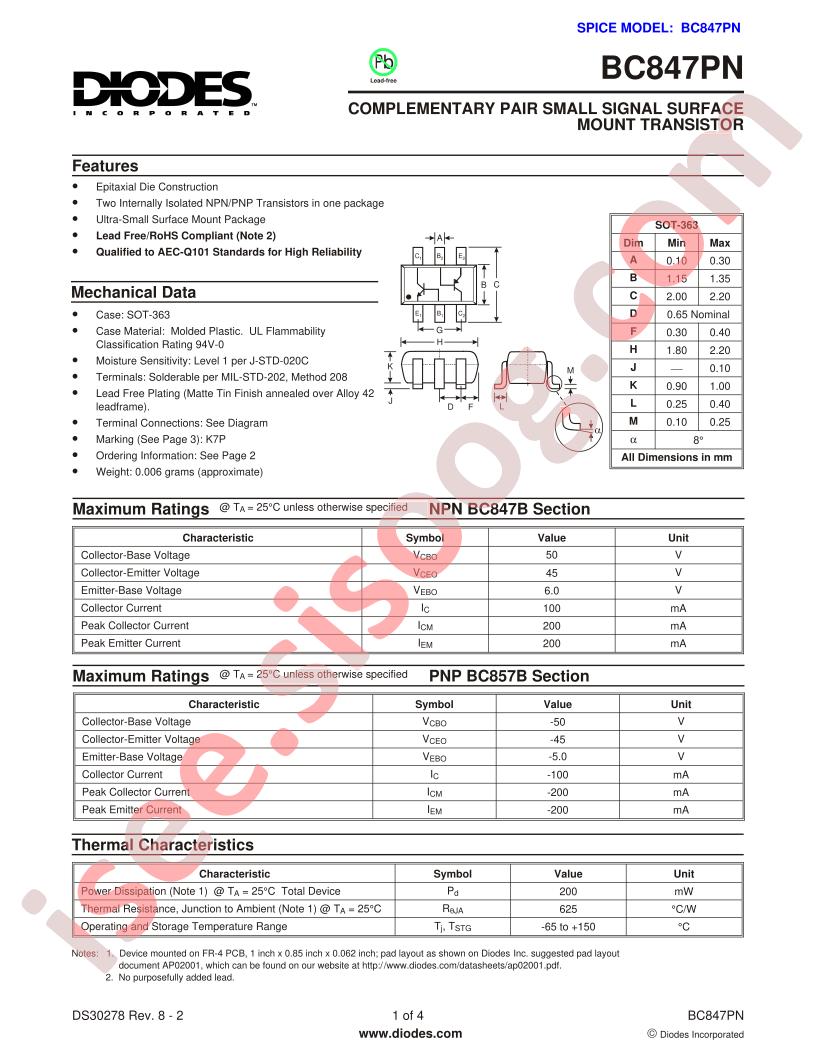

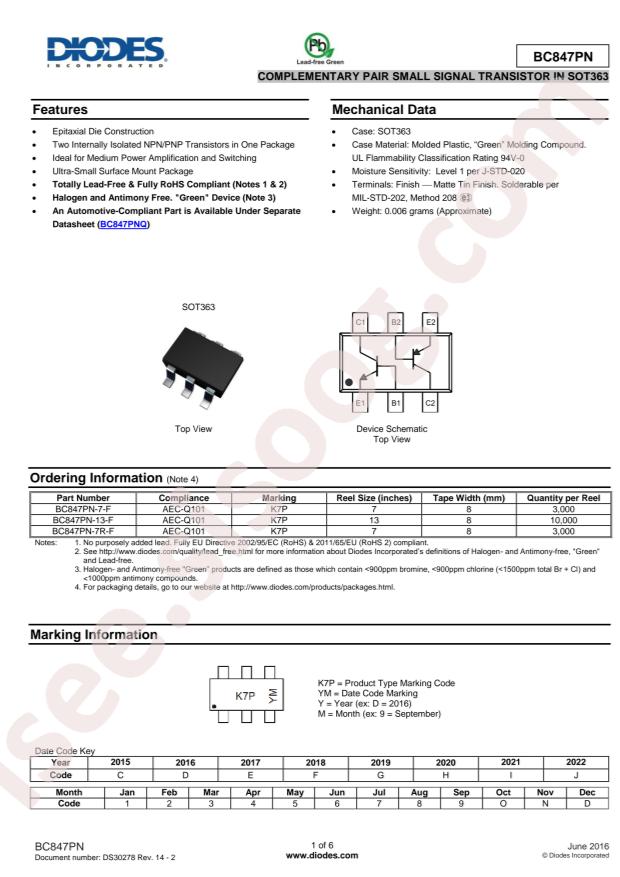

دیتاشیت BC847PN-7-F
مشخصات دیتاشیت
| نام دیتاشیت |
BC847PN-7-F
|
| حجم فایل |
227.005
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
4
|
مشخصات
-
RoHS:
true
-
Category:
Triode/MOS Tube/Transistor/Bipolar Transistors - BJT
-
Datasheet:
Diodes Incorporated BC847PN-7-F
-
Transistor Type:
1PCSNPN&1PCSPNP
-
Operating Temperature:
-65°C~+150°C@(Tj)
-
Collector Current (Ic):
100mA
-
Power Dissipation (Pd):
200mW
-
Transition Frequency (fT):
300MHz;200MHz
-
DC Current Gain (hFE@Ic,Vce):
200@2mA,5V;220@2mA,5V
-
Collector Cut-Off Current (Icbo):
15nA
-
Collector-Emitter Breakdown Voltage (Vceo):
45V
-
Collector-Emitter Saturation Voltage (VCE(sat)@Ic,Ib):
200mV@100mA,5mA;250mV@100mA,5mA
-

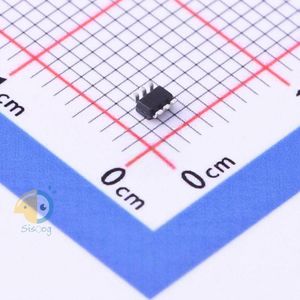

Package:
SOT-363-6(SC-70-6)
-
Manufacturer:
Diodes Incorporated
-
Part id:
178483
