LM1086S-5.0 数据手册
其他文档

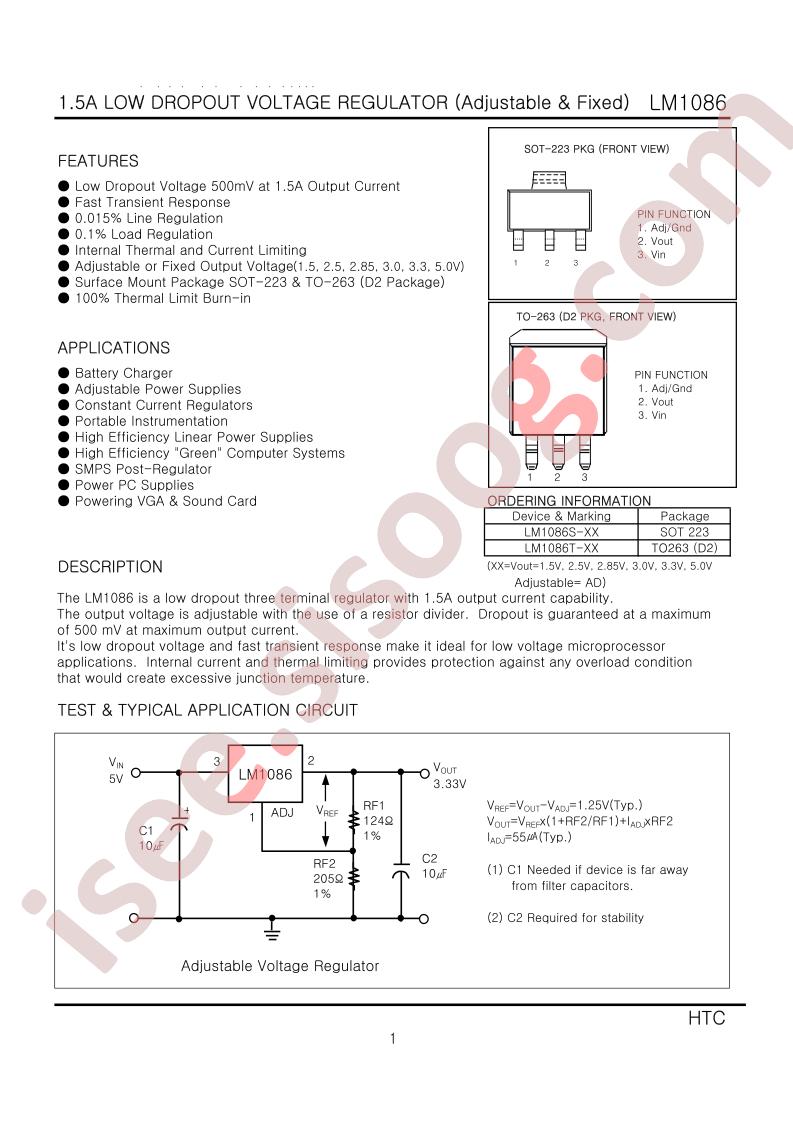

LM1086 2 pages
技术规格
- RoHS: true
- Category: Power Supply Chip/Linear Voltage Regulators (LDO)

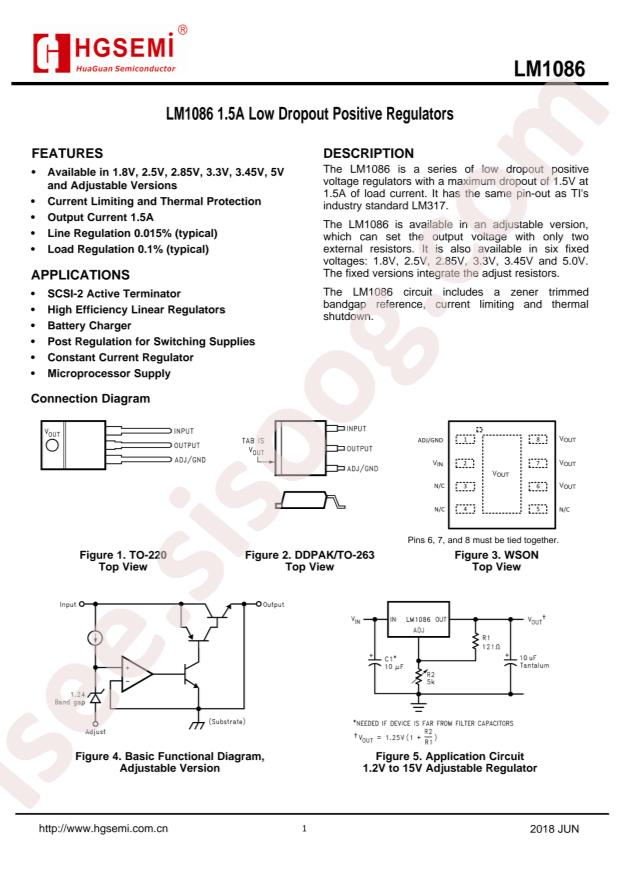

- Datasheet: HGSEMI LM1086S-5.0
- Output Type: Fixed
- Output Current: 1.5A
- Output Voltage: 5V~5V
- Dropout Voltage: 1.5V@(1.5A)
- Output Polarity: Positive
- Number of Outputs: 1
- Maximum Input Voltage: 30V
- Power Supply Rejection Ratio (PSRR): 68dB@(120Hz)
- Package: TO-263-3
- Manufacturer: HGSEMI
- Part id: 134377
