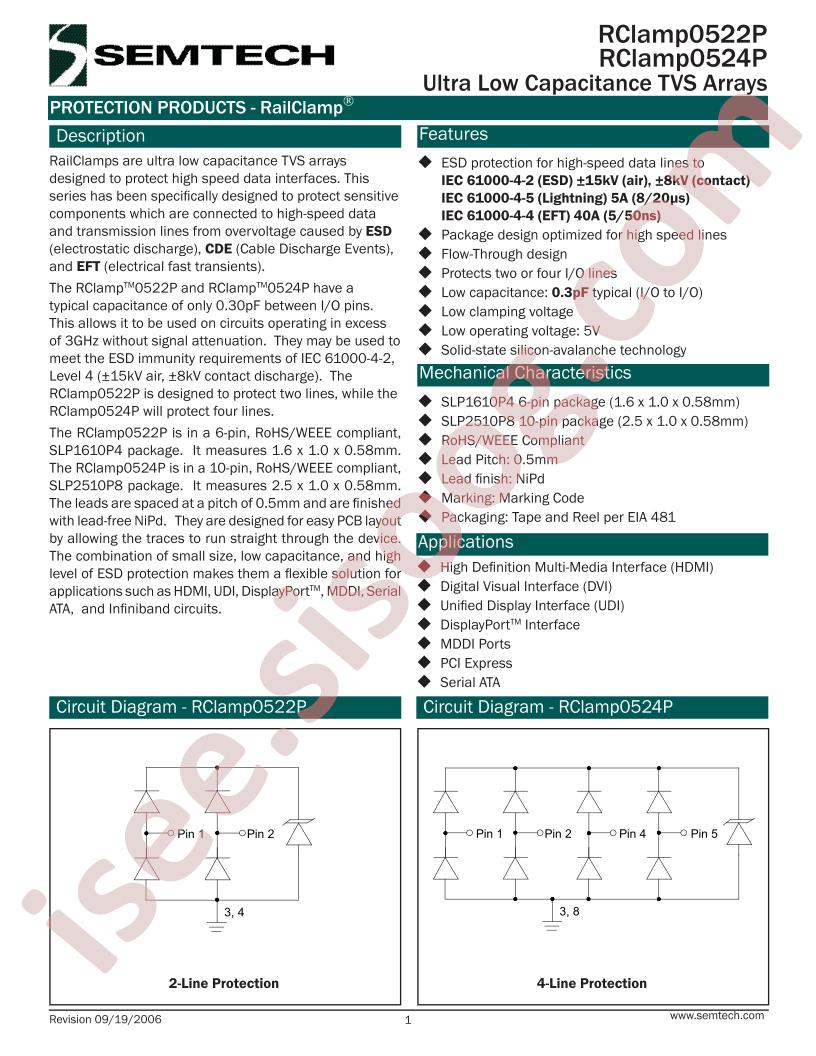

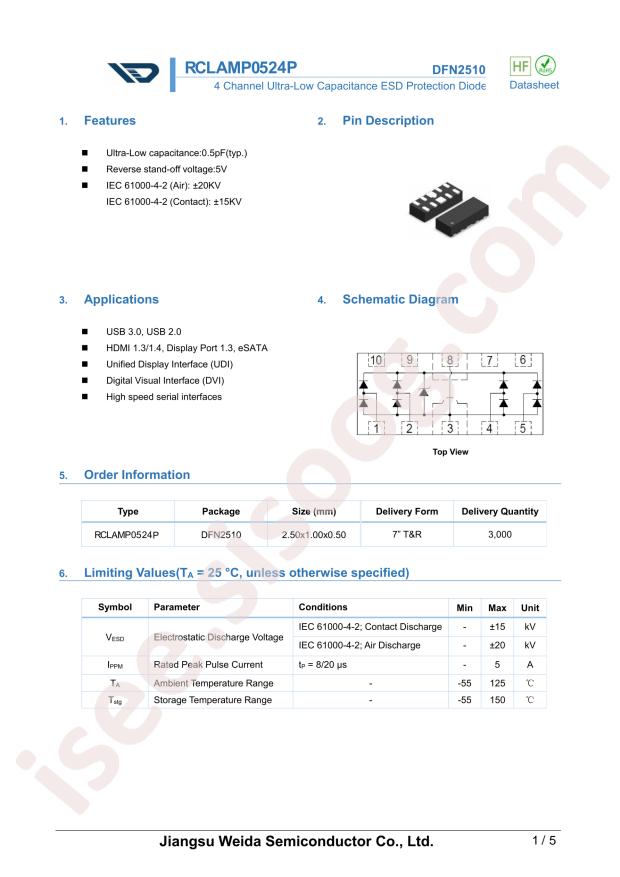

دیتاشیت RCLAMP0524P
مشخصات دیتاشیت
| نام دیتاشیت |
RCLAMP0524P
|
| حجم فایل |
636.129
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
13
|
مشخصات
-
RoHS:
true
-
Category:
TVS/Fuse/Board Level Protection/ESD Protection Devices
-
Datasheet:
Slkor(SLKORMICRO Elec.) RCLAMP0524P
-
Package:
DFN-10(1x2.5)
-
Manufacturer:
Slkor(SLKORMICRO Elec.)
-
Breakdown Voltage:
5.6V
-
Maximum Clamping Voltage:
15V
-
Reverse Stand-Off Voltage (Vrwm):
5V
-
Peak Pulse Current (Ipp)@10/1000us:
5A
-
Polarity:
Unidirectional
-
Number of Lines:
4
-
Clamping Voltage@Ipp:
15V
-
Operating Temperature:
-55°C~+125°C@(Tj)
-
Contact Discharge Vesd:
20kV
-
Breakdown Voltage (VBR):
9V
-
Reverse Leakage Current:
1uA
-
Peak Pulse Power(Ppp)@8/20us:
60W
-
Junction Capacitance(Cj)@1MHz:
0.4pF
-
Peak Pulse Current(Ipp)@8/20us:
4A
-
Part id:
256318
