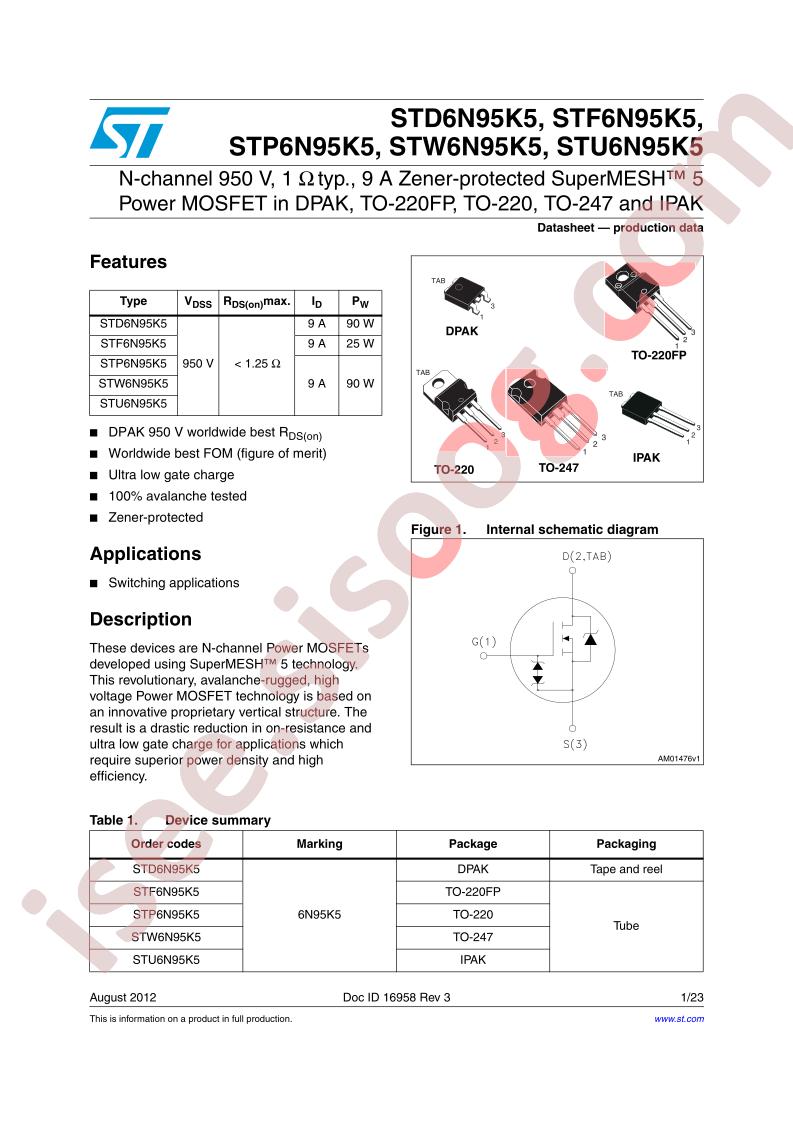

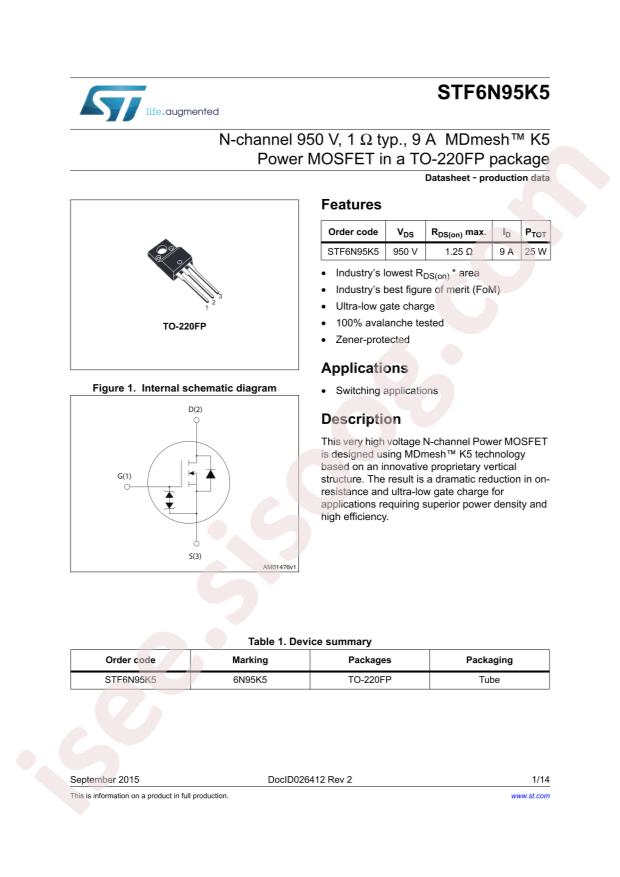

دیتاشیت STF6N95K5
مشخصات دیتاشیت
| نام دیتاشیت |
STF6N95K5
|
| حجم فایل |
1256.812
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
23
|
مشخصات
-
RoHS:
true
-
Type:
N Channel
-
Category:
Triode/MOS Tube/Transistor/MOSFETs
-
Datasheet:
STMicroelectronics STF6N95K5
-
Operating Temperature:
-55°C~+150°C@(Tj)
-
Power Dissipation (Pd):
25W
-
Total Gate Charge (Qg@Vgs):
13nC@10V
-
Drain Source Voltage (Vdss):
950V
-
Input Capacitance (Ciss@Vds):
450pF@100V
-
Continuous Drain Current (Id):
9A
-
Gate Threshold Voltage (Vgs(th)@Id):
5V@100uA
-
Drain Source On Resistance (RDS(on)@Vgs,Id):
1.25Ω@10V,3A
-
Package:
TO-220FPAB-3
-
Manufacturer:
STMicroelectronics
-
Part id:
523505
