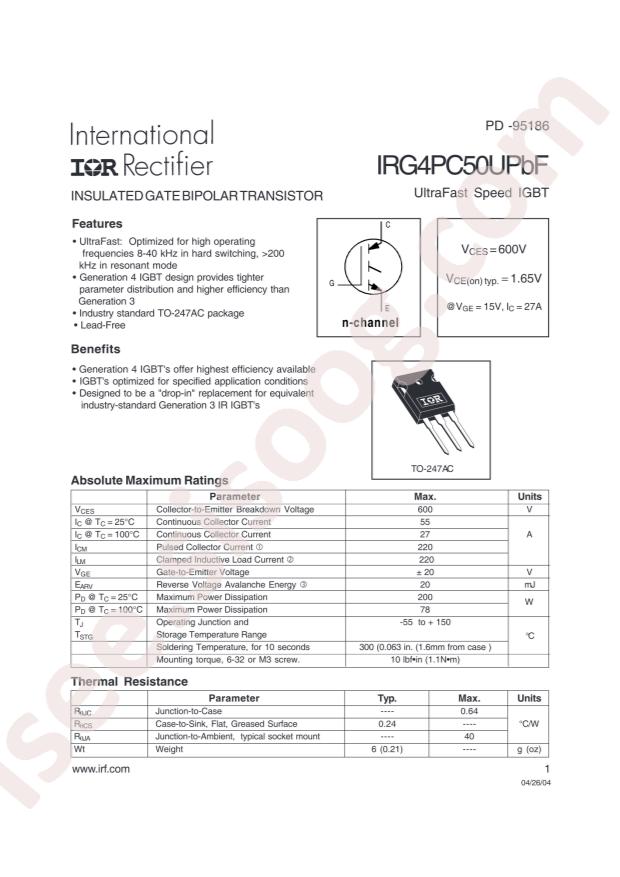

IRG4PC50UPBF دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
IRG4PC50UPBF
|
|
حجم فایل
|
67.541
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
9
|
مشخصات فنی
-
RoHS:
true
-
Type:
-
-
Category:
Triode/MOS Tube/Transistor/IGBTs
-
Datasheet:
Infineon Technologies IRG4PC50UPBF
-
Operating Temperature:
-55°C~+150°C@(Tj)
-
Collector Current (Ic):
55A
-
Power Dissipation (Pd):
200W
-
Input Capacitance (Cies@Vce):
-
-
Turn?on Switching Loss (Eon):
0.12mJ
-
Pulsed Collector Current (Icm):
220A
-
Turn?off Switching Loss (Eoff):
0.54mJ
-
Collector-Emitter Breakdown Voltage (Vces):
600V
-
Gate-Emitter Threshold Voltage (Vge(th)@Ic):
-
-
Package:
TO-247AC-3
-
Manufacturer:
Infineon Technologies
-
Part id:
204447
