ES1JF 数据手册
技术规格
- RoHS: true
- Category: Diodes/Diodes - Fast Recovery Rectifiers

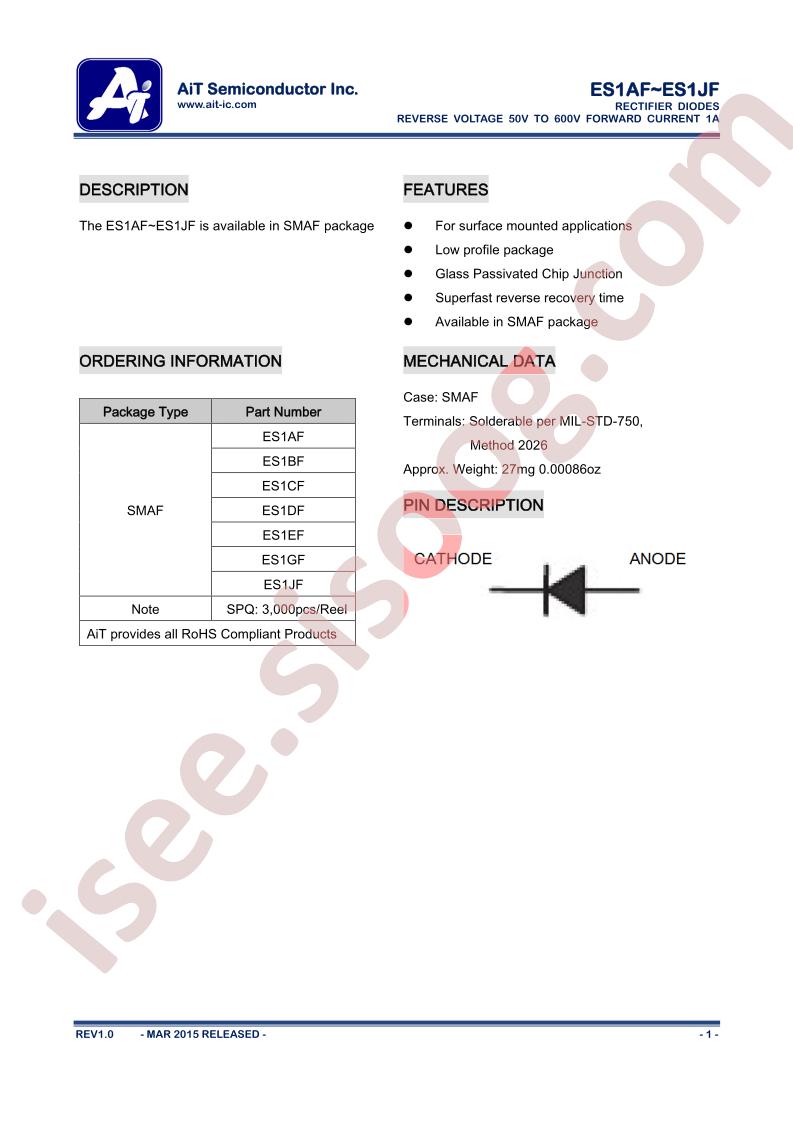

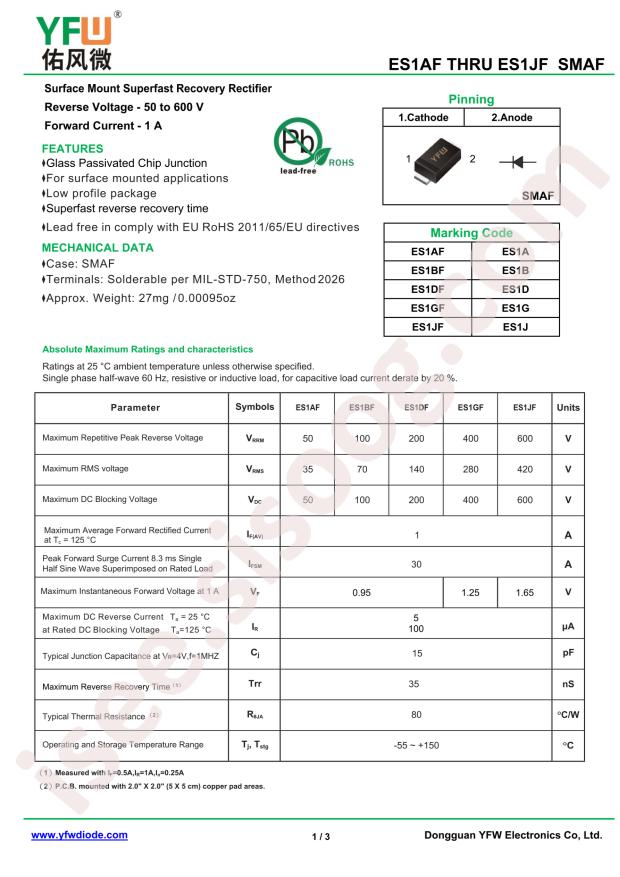

- Datasheet: GOODWORK ES1JF
- Diode Configuration: Single
- Reverse Voltage (Vr): 600V
- Operating Temperature: -65°C~+150°C@(Tj)
- Forward Voltage (Vf@If): 1.7V@1A
- Reverse Leakage Current: 5uA@600V
- Reverse Recovery Time (trr): 35ns
- Average Rectified Current (Io): 1A
- Package: SMAF
- Manufacturer: GOODWORK
- Part id: 1410381
