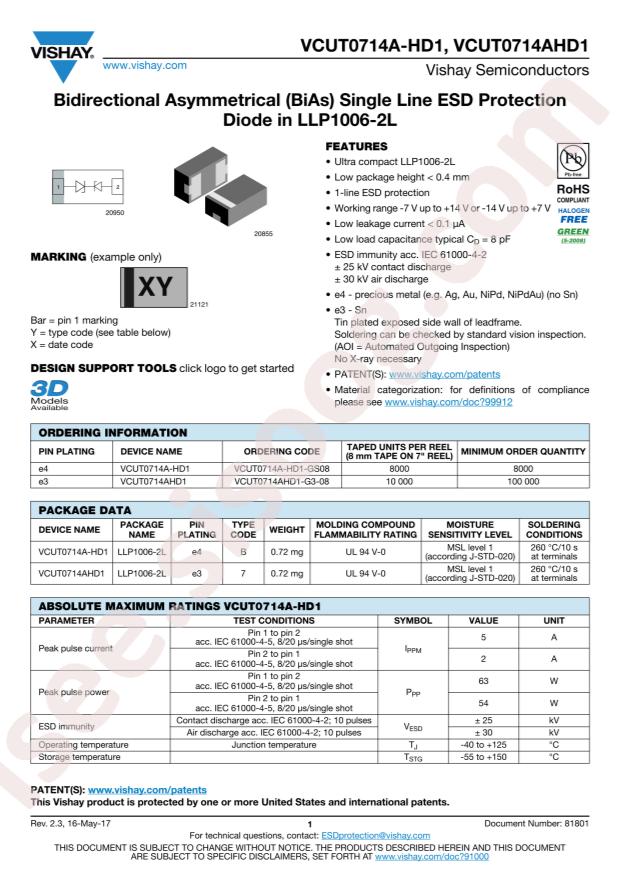

VCUT0714A-HD1-GS08 数据手册
其他文档
VCUT0714A-HD1-GS08 6 pages
技术规格
- RoHS: true
- Category: TVS/Fuse/Board Level Protection/ESD Protection Devices
- Polarity: Bi-Directional
- Datasheet: Vishay Intertech VCUT0714A-HD1-GS08
- Clamping Voltage@Ipp: 17V;30V
- Operating Temperature: -40°C~+125°C@(Tj)
- Breakdown Voltage (VBR): 7.3V
- Peak Pulse Power(Ppp)@8/20us: 54W;63W
- Junction Capacitance(Cj)@1MHz: 8pF@1MHz
- Peak Pulse Current(Ipp)@8/20us: 5A
- Reverse Stand-Off Voltage (Vrwm): 7V
- Package: DFN1006-2(SOD-882)
- Manufacturer: Vishay Intertech
- Part id: 227277
