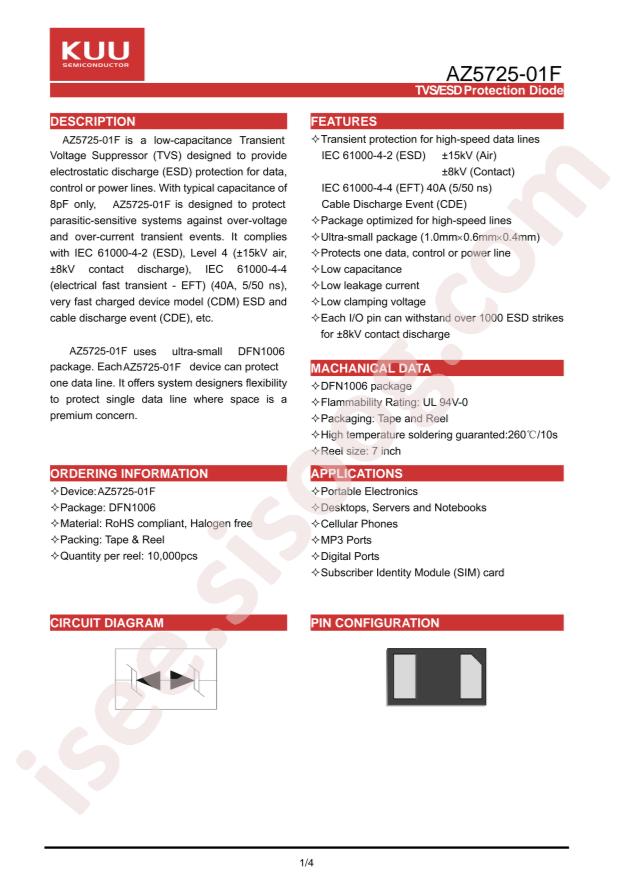

دیتاشیت AZ5725-01F
مشخصات دیتاشیت
| نام دیتاشیت |
AZ5725-01F
|
| حجم فایل |
1882.515
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
4
|
مشخصات
-
RoHS:
true
-
Category:
TVS/Fuse/Board Level Protection/ESD Protection Devices
-
Datasheet:
TECH PUBLIC AZ5725-01F
-
Package:
DFN1006(SOD-882)
-
Manufacturer:
TECH PUBLIC
-
Polarity:
Bi-Directional
-
Number of Lines:
1
-
Clamping Voltage@Ipp:
15V
-
Operating Temperature:
-55°C~+125°C@(Tj)
-
Contact Discharge Vesd:
8kV
-
Breakdown Voltage (VBR):
6V
-
Reverse Leakage Current:
1uA
-
Peak Pulse Power(Ppp)@8/20us:
100W
-
Junction Capacitance(Cj)@1MHz:
15pF
-
Peak Pulse Current(Ipp)@8/20us:
5A
-
Reverse Stand-Off Voltage (Vrwm):
5V
-
Part id:
1442011
