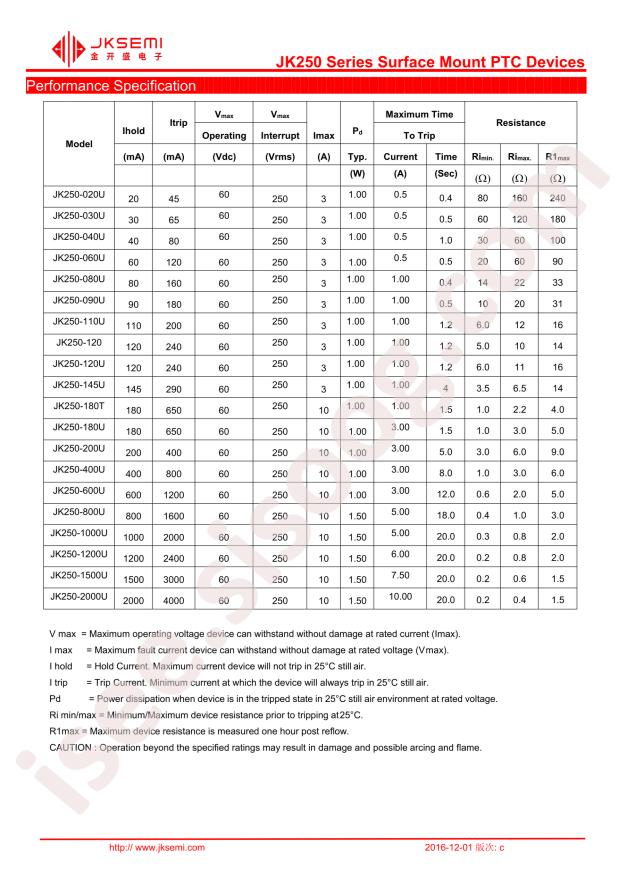

JK250-180U 数据手册
其他文档
JK250-145U 4 pages
JK250-180T 5 pages
技术规格
- RoHS: true
- Category: TVS/Fuse/Board Level Protection/Resettable Fuses
- Datasheet: Jinrui Electronic Materials Co. JK250-180U
- Hold Current: 180mA
- Trip Current: 650mA
- Current Rating (Max): 3A
- Maximum Time to Trip: 1.5s
- Operating Voltage (Max): 250V
- Package: Plugin
- Manufacturer: Jinrui Electronic Materials Co.
- Power Dissipation: 1W
- Operating Temperature: -40°C~+85°C
- Resistance - Initial (Ri) (Min): 1Ω
- Resistance - Post Trip (R1) (Max): 5Ω
- Part id: 1283052
