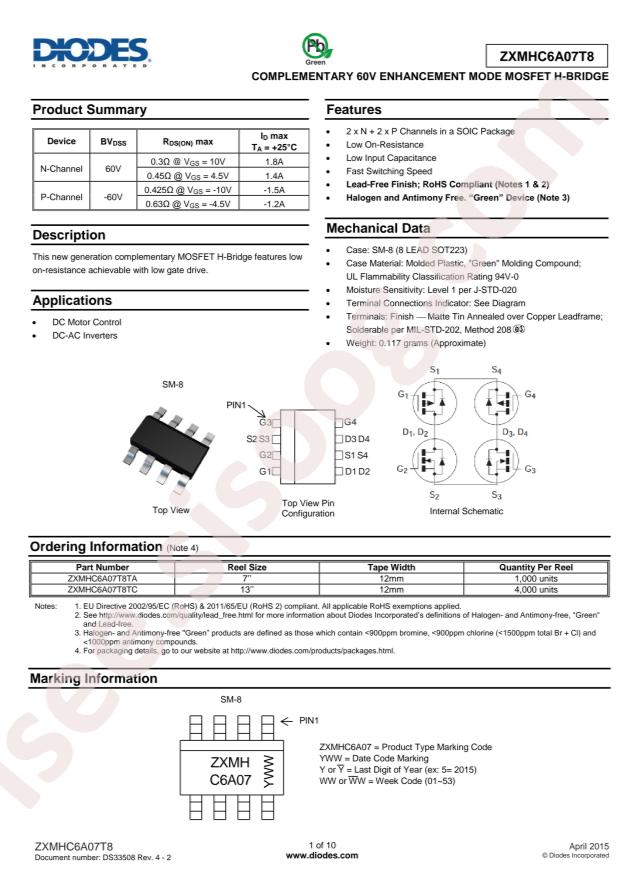

ZXMHC6A07T8TA دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
ZXMHC6A07T8TA
|
|
حجم فایل
|
90.477
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
10
|
مشخصات فنی
-
RoHS:
true
-
Type:
2PCSNand2PCSPChannel(Half Bridge)
-
Category:
Triode/MOS Tube/Transistor/MOSFETs
-
Datasheet:
Diodes Incorporated ZXMHC6A07T8TA
-
Operating Temperature:
-55°C~+150°C@(Tj)
-
Power Dissipation (Pd):
1.3W
-
Total Gate Charge (Qg@Vgs):
3.2nC@10V
-
Input Capacitance (Ciss@Vds):
166pF@40V
-
Continuous Drain Current (Id):
1.6A;1.3A
-
Gate Threshold Voltage (Vgs(th)@Id):
3V@250uA
-
Reverse Transfer Capacitance (Crss@Vds):
-
-
Drain Source On Resistance (RDS(on)@Vgs,Id):
300mΩ@1.8A,10V
-
Package:
SM-8
-
Manufacturer:
Diodes Incorporated
-
Part id:
98570
