دیتاشیت STGD6NC60HDT4

STGD6NC60HDT4

مشخصات دیتاشیت

نام دیتاشیت STGD6NC60HDT4
حجم فایل 232.946 کیلوبایت
نوع فایل pdf
تعداد صفحات 9

دانلود دیتاشیت STGD6NC60HDT4

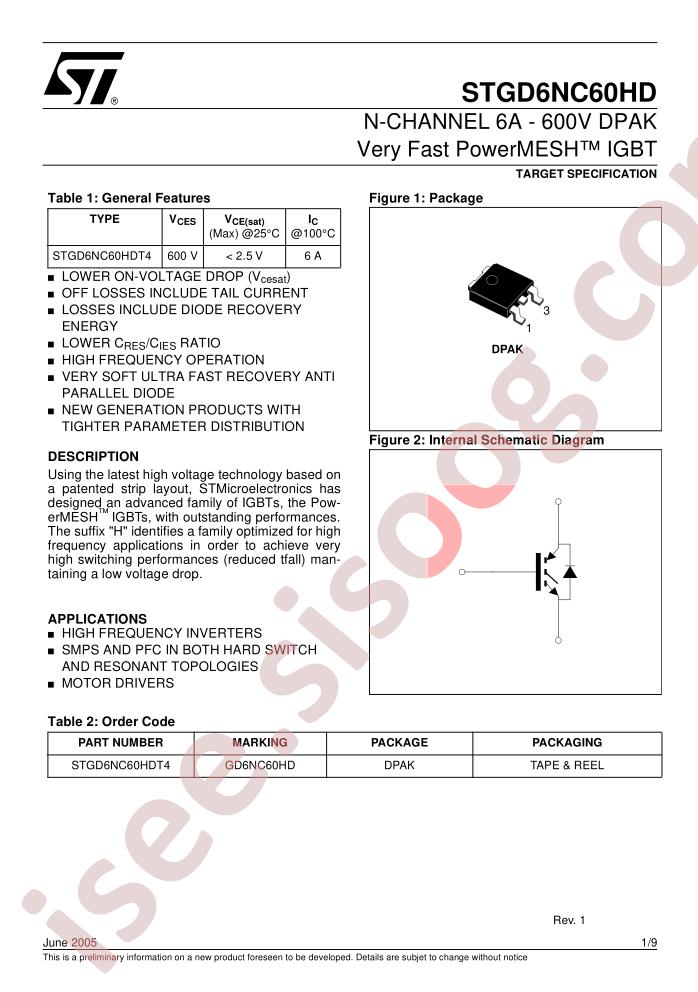

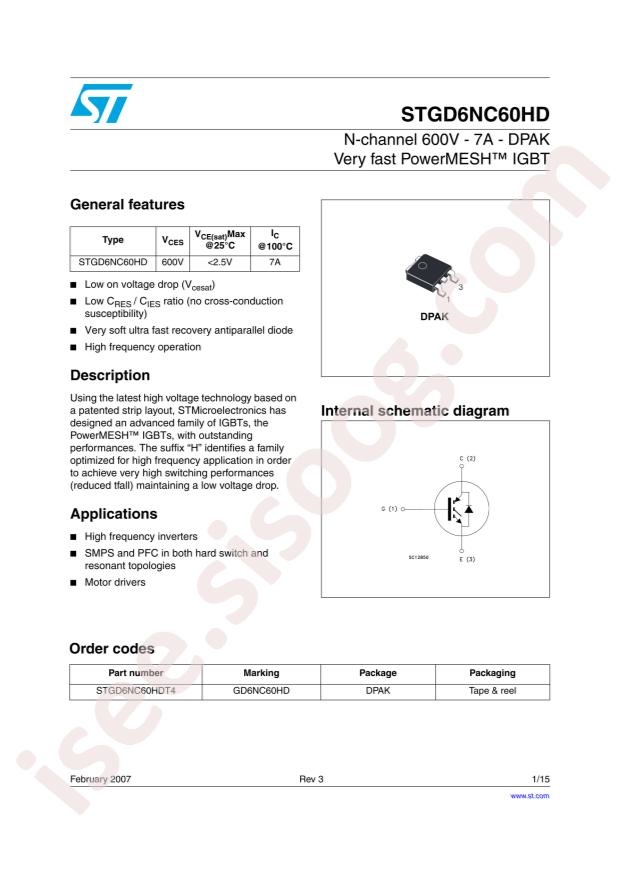

STGD6NC60HDT4 Datasheet

مشخصات

  • RoHS: true
  • Type: -
  • Category: Triode/MOS Tube/Transistor/IGBTs
  • Datasheet: STMicroelectronics STGD6NC60HDT4
  • Operating Temperature: -55°C~+150°C@(Tj)
  • Collector Current (Ic): 15A
  • Power Dissipation (Pd): 56W
  • Turn?on Delay Time (Td(on)): 12ns
  • Input Capacitance (Cies@Vce): -
  • Turn?on Switching Loss (Eon): 0.02mJ
  • Total Gate Charge (Qg@Ic,Vge): 13.6nC
  • Turn?off Delay Time (Td(off)): 76ns
  • Pulsed Collector Current (Icm): 21A
  • Turn?off Switching Loss (Eoff): 0.068mJ
  • Diode Reverse Recovery Time (Trr): 21ns
  • Collector-Emitter Breakdown Voltage (Vces): 600V
  • Gate-Emitter Threshold Voltage (Vge(th)@Ic): 2.5V@15V,3A
  • Package: TO-252
  • Manufacturer: STMicroelectronics
  • Part id: 116059
