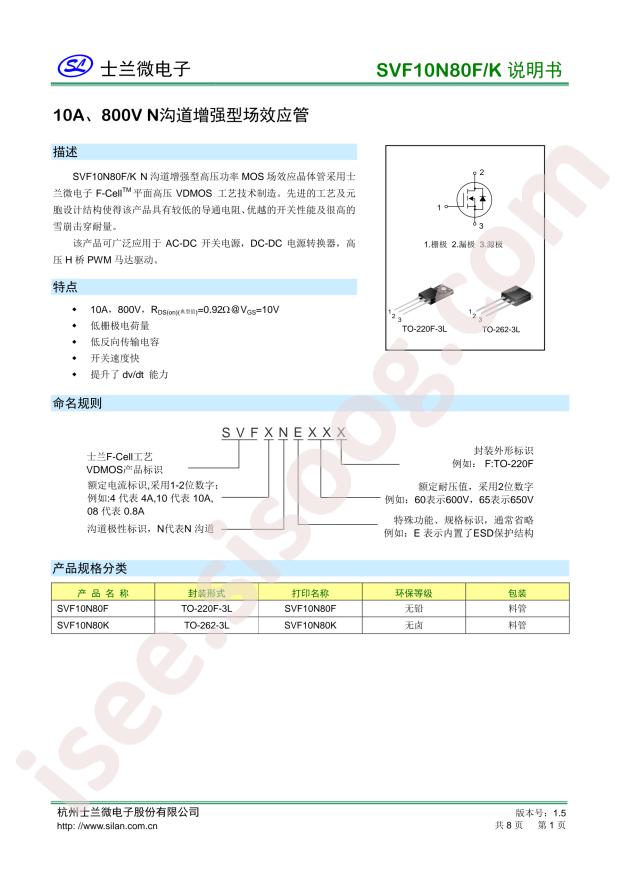

SVF10N80F دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
SVF10N80F
|
|
حجم فایل
|
59.365
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
8
|
مشخصات فنی
-
RoHS:
true
-
Type:
N Channel
-
Category:
Triode/MOS Tube/Transistor/MOSFETs
-
Datasheet:
Hangzhou Silan Microelectronics SVF10N80F
-
Operating Temperature:
-55°C~+150°C@(Tj)
-
Power Dissipation (Pd):
62W
-
Total Gate Charge (Qg@Vgs):
33nC@10V
-
Drain Source Voltage (Vdss):
800V
-
Input Capacitance (Ciss@Vds):
1.626nF@25V
-
Continuous Drain Current (Id):
10A
-
Gate Threshold Voltage (Vgs(th)@Id):
4V@250uA
-
Reverse Transfer Capacitance (Crss@Vds):
6.5pF@25V
-
Drain Source On Resistance (RDS(on)@Vgs,Id):
920mΩ@10V,5A
-
Package:
TO-220
-
Manufacturer:
Hangzhou Silan Microelectronics
