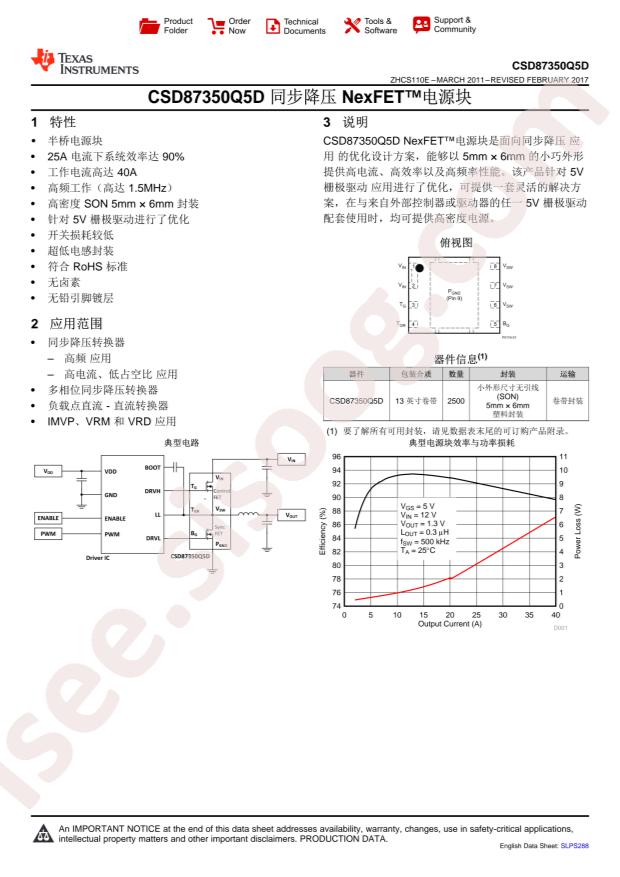

دیتاشیت CSD87350Q5D
مشخصات دیتاشیت
| نام دیتاشیت |
CSD87350Q5D
|
| حجم فایل |
71.113
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
23
|
مشخصات
-
RoHS:
true
-
Type:
2 N-Channel
-
Category:
Triode/MOS Tube/Transistor/MOSFETs
-
Datasheet:
Texas Instruments CSD87350Q5D
-
Operating Temperature:
-55°C~+150°C@(Tj)
-
Power Dissipation (Pd):
12W
-
Total Gate Charge (Qg@Vgs):
10.9nC@4.5V
-
Drain Source Voltage (Vdss):
30V
-
Input Capacitance (Ciss@Vds):
1770pF@15V
-
Continuous Drain Current (Id):
40A
-
Gate Threshold Voltage (Vgs(th)@Id):
2.1V@250uA
-
Drain Source On Resistance (RDS(on)@Vgs,Id):
5.9mΩ@8V,20A
-
Package:
LSON-8(5x6)
-
Manufacturer:
Texas Instruments
