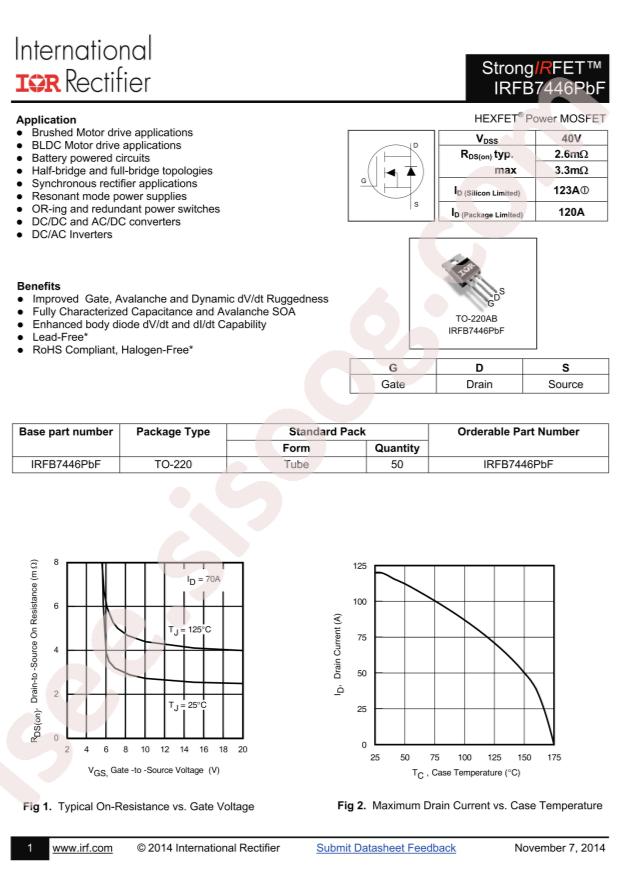

IRFB7446PBF دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
IRFB7446PBF
|
|
حجم فایل
|
77.32
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
10
|
مشخصات فنی
-
RoHS:
true
-
Type:
N Channel
-
Category:
Triode/MOS Tube/Transistor/MOSFETs
-
Datasheet:
Infineon Technologies IRFB7446PBF
-
Operating Temperature:
-55°C~+175°C@(Tj)
-
Power Dissipation (Pd):
99W
-
Total Gate Charge (Qg@Vgs):
93nC@10V
-
Drain Source Voltage (Vdss):
40V
-
Input Capacitance (Ciss@Vds):
3183pF@25V
-
Continuous Drain Current (Id):
120A
-
Gate Threshold Voltage (Vgs(th)@Id):
3.9V@100uA
-
Drain Source On Resistance (RDS(on)@Vgs,Id):
3.3mΩ@10V,70A
-
Package:
TO-220
-
Manufacturer:
Infineon Technologies
