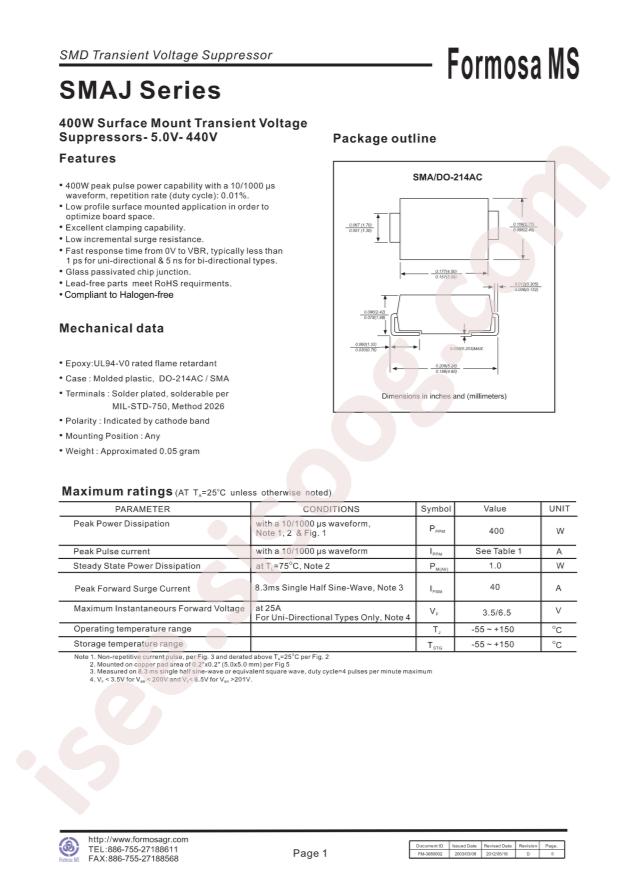

دیتاشیت SMAJ12A
مشخصات دیتاشیت
| نام دیتاشیت |
SMAJ12A
|
| حجم فایل |
75.533
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
6
|
مشخصات
-
RoHS:
true
-
Category:
TVS/Fuse/Board Level Protection/TVS
-
Datasheet:
RUILON(Shenzhen Ruilongyuan Elec) SMAJ12A
-
Breakdown Voltage:
13.3V
-
Maximum Clamping Voltage:
19.9V
-
Reverse Stand-Off Voltage (Vrwm):
12V
-
Peak Pulse Current (Ipp)@10/1000μs:
20.1A
-
Package:
SMA(DO-214AC)
-
Manufacturer:
RUILON(Shenzhen Ruilongyuan Elec)
-
Reverse Leakage Current (Ir):
5uA
-
Peak Pulse Current (Ipp)@10/1000us:
20.1A
-
Peak Pulse Power Dissipation (Ppp)@10/1000us:
400W
-
Unidirectional Channels:
1
-
Peak Pulse Power Dissipation (Ppp)@10/1000μs:
400W
-
Bidirectional Channels:
0
