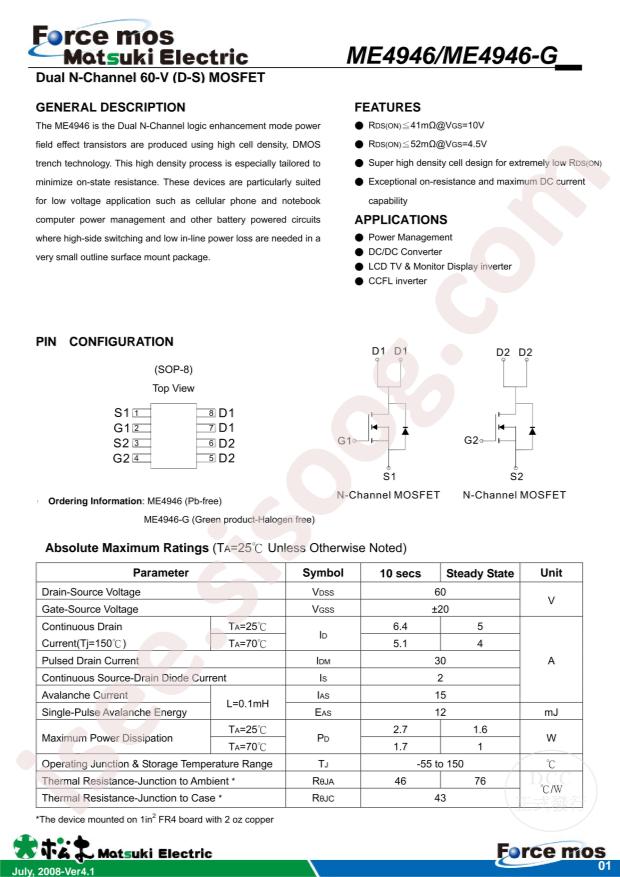

ME4946 Datasheet
Datasheet specifications
| Datasheet's name | ME4946 |
|---|---|
| File size | 88.397 KB |
| File type | |
| Number of pages | 5 |
Download Datasheet ME4946 |
Download Datasheet |
|---|
Other documentations
No other documentation was found!
Technical specifications
- RoHS: true
- Type: 2 N-Channel
- Category: Triode/MOS Tube/Transistor/MOSFETs
- Datasheet: MATSUKI ME4946
- Operating Temperature: -55°C~+150°C@(Tj)
- Power Dissipation (Pd): 1.6W
- Total Gate Charge (Qg@Vgs): 13.3nC@5V
- Drain Source Voltage (Vdss): 60V
- Input Capacitance (Ciss@Vds): 940pF@30V
- Continuous Drain Current (Id): 5A
- Gate Threshold Voltage (Vgs(th)@Id): 1.8V@250uA
- Reverse Transfer Capacitance (Crss@Vds): 33pF@30V
- Drain Source On Resistance (RDS(on)@Vgs,Id): 33mΩ@10V,5.3A
- Package: SOP-8
- Manufacturer: MATSUKI
