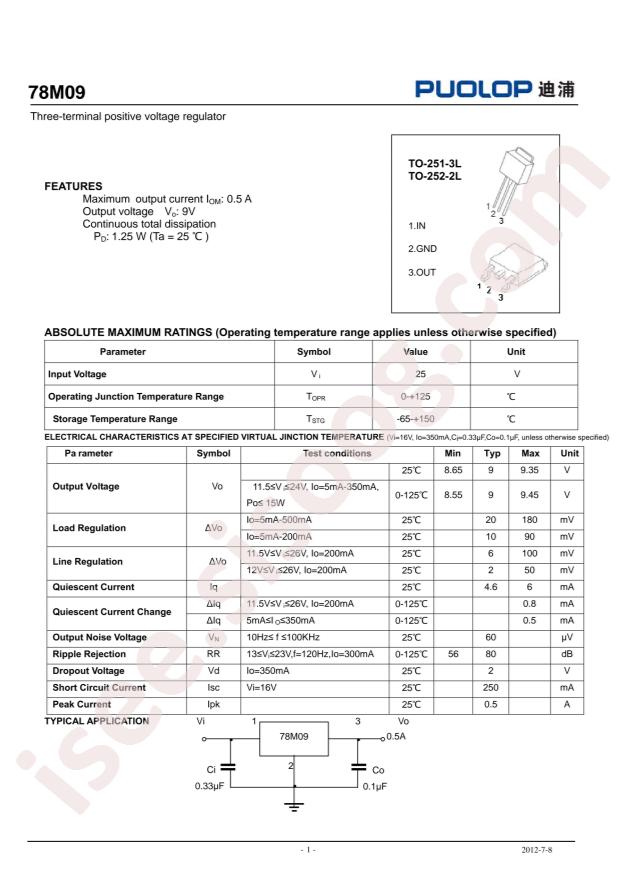

78M09 Datasheet
Datasheet specifications
|
Datasheet's name
|
78M09
|
|
File size
|
74.444
KB
|
|
File type
|
pdf
|
|
Number of pages
|
1
|
Technical specifications
-
RoHS:
true
-
Category:
Power Supply Chip/Linear Voltage Regulators (LDO)
-
Datasheet:
Shikues 78M09
-
Output Type:
Fixed
-
Output Current:
500mA
-
Output Voltage:
9V
-
Dropout Voltage:
2V@(500mA)
-
Output Polarity:
Positive
-
Number of Outputs:
1
-
Maximum Input Voltage:
35V
-
Power Supply Rejection Ratio (PSRR):
71dB@(120Hz)
-
Package:
TO-252
-
Manufacturer:
Shikues
-
Operating Temperature:
±125°C@(Tj)
-
Quiescent Current (Ground Current):
4.6mA
