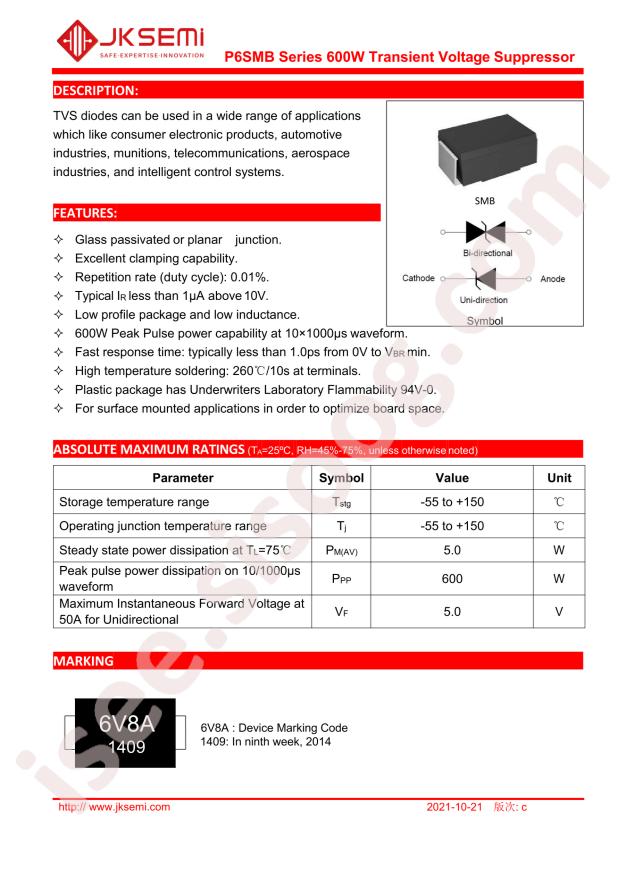

P6SMB22CA 数据手册
其他文档
P6SMB62A 3 pages
P6SMB6.8CA 6 pages
技术规格
- RoHS: true
- Category: TVS/Fuse/Board Level Protection/TVS
- Breakdown Voltage: 20.9V
- Bidirectional Channels: 1
- Maximum Clamping Voltage: 30.6V
- Reverse Stand-Off Voltage (Vrwm): 18.8V
- Peak Pulse Current (Ipp)@10/1000us: 19.9A
- Peak Pulse Power Dissipation (Ppp)@10/1000us: 600W
- Package: SMB(DO-214AA)
- Manufacturer: Littelfuse
- Datasheet: LGE P6SMB22CA
- Unidirectional Channels: 0
- Reverse Leakage Current (Ir): 1uA
- Peak Pulse Current (Ipp)@10/1000μs: 19.9A
- Peak Pulse Power Dissipation (Ppp)@10/1000μs: 600W
