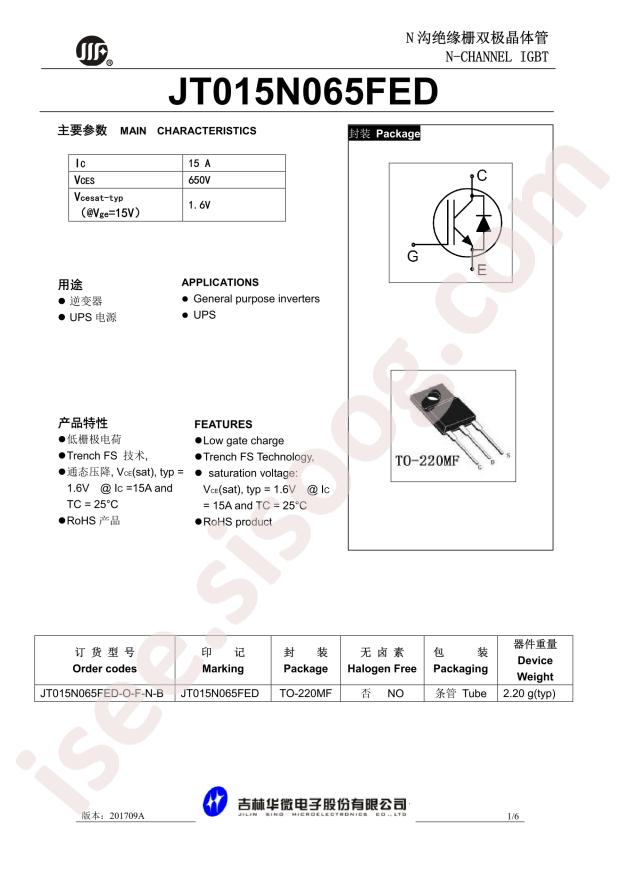

دیتاشیت JT015N065FED
مشخصات دیتاشیت
| نام دیتاشیت |
JT015N065FED
|
| حجم فایل |
58.618
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
6
|
مشخصات
-
RoHS:
true
-
Type:
-
-
Category:
Triode/MOS Tube/Transistor/IGBTs
-
Datasheet:
Jilin Sino-Microelectronics JT015N065FED
-
Operating Temperature:
-55°C~+150°C@(Tj)
-
Collector Current (Ic):
30A
-
Power Dissipation (Pd):
31W
-
Turn?on Delay Time (Td(on)):
-
-
Input Capacitance (Cies@Vce):
880pF@25V
-
Turn?on Switching Loss (Eon):
-
-
Diode Forward Voltage (Vf@If):
1.4V@15A
-
Total Gate Charge (Qg@Ic,Vge):
-
-
Turn?off Delay Time (Td(off)):
-
-
Pulsed Collector Current (Icm):
45A
-
Turn?off Switching Loss (Eoff):
-
-
Diode Reverse Recovery Time (Trr):
-
-
Collector Cut-Off Current (Ices@Vce):
10uA@650V
-
Collector-Emitter Breakdown Voltage (Vces):
650V
-
Gate-Emitter Threshold Voltage (Vge(th)@Ic):
6.5V@250uA
-
Collector-Emitter Saturation Voltage (VCE(sat)@Ic,Vge):
1.6V@15A,15V
-
Package:
TO-220MF
-
Manufacturer:
Jilin Sino-Microelectronics
