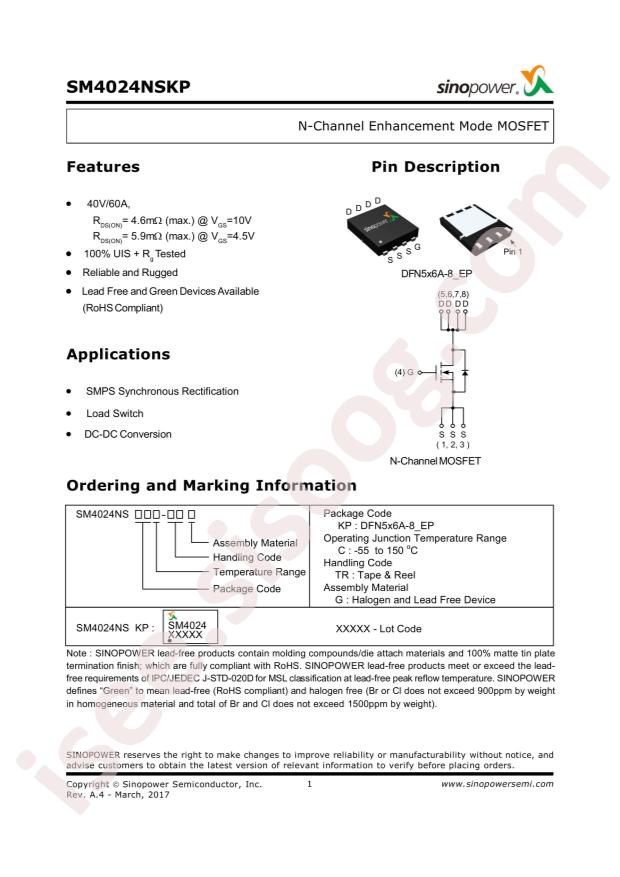

SM4024NSKPC-TRG دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
SM4024NSKPC-TRG
|
|
حجم فایل
|
67.311
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
10
|
مشخصات فنی
-
RoHS:
true
-
Type:
N Channel
-
Category:
Triode/MOS Tube/Transistor/MOSFETs
-
Datasheet:
Sinopower Semicon SM4024NSKPC-TRG
-
Operating Temperature:
+150°C@(Tj)
-
Power Dissipation (Pd):
50W
-
Total Gate Charge (Qg@Vgs):
19.4nC@4.5V
-
Drain Source Voltage (Vdss):
40V
-
Input Capacitance (Ciss@Vds):
2.43nF@15V
-
Continuous Drain Current (Id):
60A
-
Gate Threshold Voltage (Vgs(th)@Id):
1.9V@250uA
-
Reverse Transfer Capacitance (Crss@Vds):
165pF@15V
-
Drain Source On Resistance (RDS(on)@Vgs,Id):
4.75mΩ@4.5V,15A
-

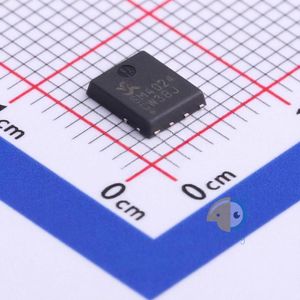

Package:
PDFN-8(5.8x4.9)
-
Manufacturer:
Sinopower Semicon
