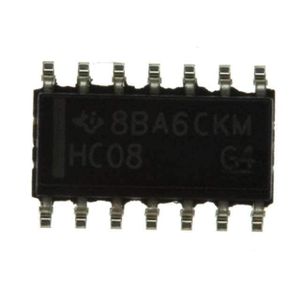

SN74HC08D Datasheet

SN74HC08PWRG4

Datasheet specifications

Datasheet's name SN74HC08PWRG4
File size 52.207 KB
File type pdf
Number of pages 34

Download Datasheet SN74HC08PWRG4

Download Datasheet

Other documentations

No other documentation was found!

Technical specifications

  • RoHS: true
  • Series: 74HC
  • Category: Logic ICs/Gates
  • Datasheet: Texas Instruments SN74HC08D
  • Sink Current: 5.2mA
  • Source Current: 5.2mA
  • Supply Voltage: 2V~6V
  • Logic Gate Type: And
  • Number of Channels: 4
  • Low Level Range (VIL): 0.5V~1.8V
  • Operating Temperature: -40°C~+85°C
  • High Level Range (VIH): 1.5V~4.2V
  • Propagation Delay Time: 17ns@6V,50pF
  • Quiescent Current (Max): 2uA
  • Package: SOP-14
  • Manufacturer: Texas Instruments
