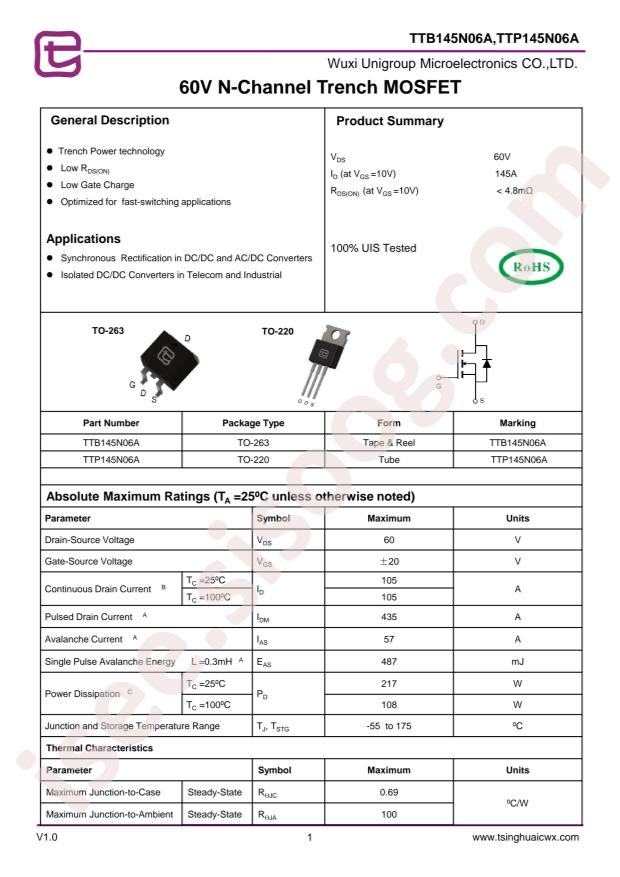

TTB145N06A دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
TTB145N06A
|
|
حجم فایل
|
82.297
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
8
|
مشخصات فنی
-
RoHS:
true
-
Type:
N Channel
-
Category:
Triode/MOS Tube/Transistor/MOSFETs
-
Datasheet:
WUXI UNIGROUP MICRO TTB145N06A
-
Operating Temperature:
-55°C~+175°C@(Tj)
-
Power Dissipation (Pd):
217W
-
Total Gate Charge (Qg@Vgs):
125nC@10V
-
Drain Source Voltage (Vdss):
60V
-
Input Capacitance (Ciss@Vds):
6.819nF@30V
-
Continuous Drain Current (Id):
105A
-
Gate Threshold Voltage (Vgs(th)@Id):
3V@250uA
-
Reverse Transfer Capacitance (Crss@Vds):
461pF@30V
-
Drain Source On Resistance (RDS(on)@Vgs,Id):
3.8mΩ@10V,30A
-
Package:
TO-263-2
-
Manufacturer:
WUXI UNIGROUP MICRO
