ES2GA 数据手册
技术规格
- RoHS: true
- Category: Diodes/Diodes - Fast Recovery Rectifiers

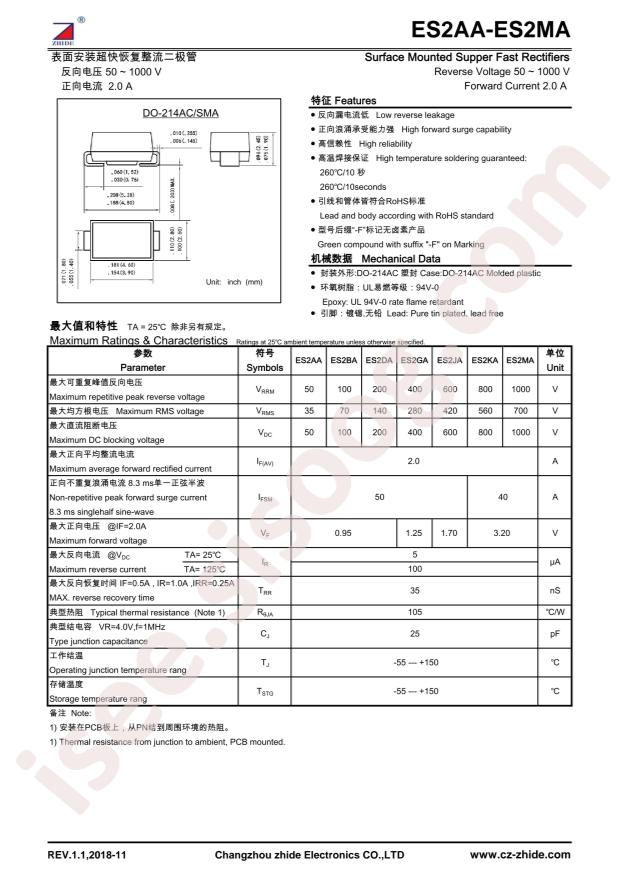

- Datasheet: Yangzhou Yangjie Elec Tech ES2GA
- Diode Configuration: Single
- Reverse Voltage (Vr): 400V
- Operating Temperature: -55°C~+150°C@(Tj)
- Forward Voltage (Vf@If): 1.3V@2A
- Reverse Leakage Current: 5uA@400V
- Reverse Recovery Time (trr): 35ns
- Average Rectified Current (Io): 2A

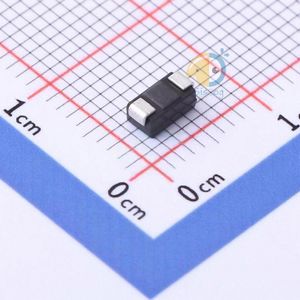

- Package: SMA(DO-214AC)
- Manufacturer: Yangzhou Yangjie Elec Tech
