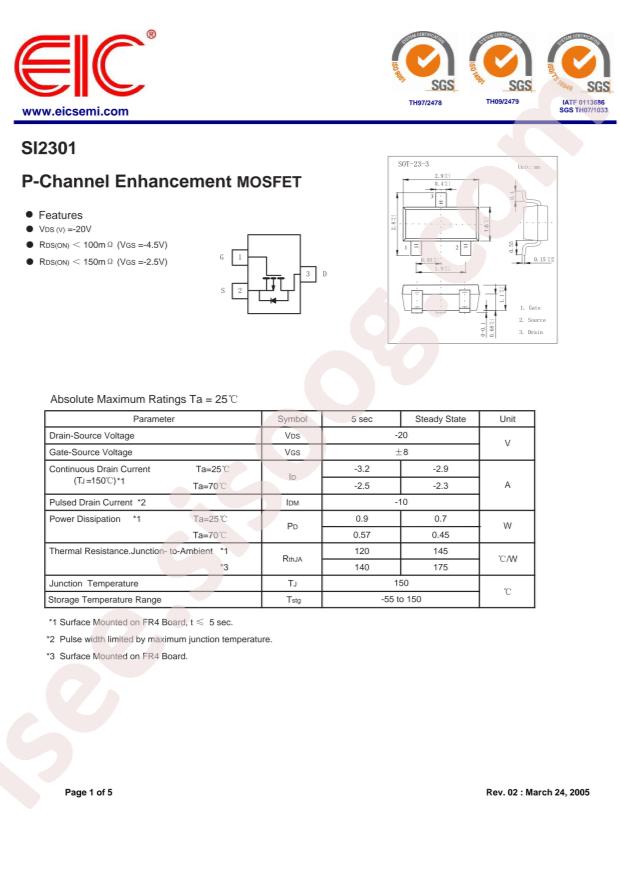

SI2301 Datasheet
Datasheet specifications
|
Datasheet's name
|
SI2301
|
|
File size
|
58.104
KB
|
|
File type
|
pdf
|
|
Number of pages
|
5
|
Technical specifications
-
RoHS:
true
-
Type:
P Channel
-
Category:
Triode/MOS Tube/Transistor/MOSFETs
-
Datasheet:
YONGYUTAI SI2301
-
Operating Temperature:
+150°C@(Tj)
-
Power Dissipation (Pd):
700mW
-
Drain Source Voltage (Vdss):
20V
-
Continuous Drain Current (Id):
2.2A
-
Gate Threshold Voltage (Vgs(th)@Id):
0.62V@250uA
-
Drain Source On Resistance (RDS(on)@Vgs,Id):
90mΩ@4.5V,1.5A
-
Package:
SOT-23(TO-236)
-
Manufacturer:
YONGYUTAI
-
Total Gate Charge (Qg@Vgs):
-
-
Input Capacitance (Ciss@Vds):
405pF@10V
-
Reverse Transfer Capacitance (Crss@Vds):
55pF@10V
