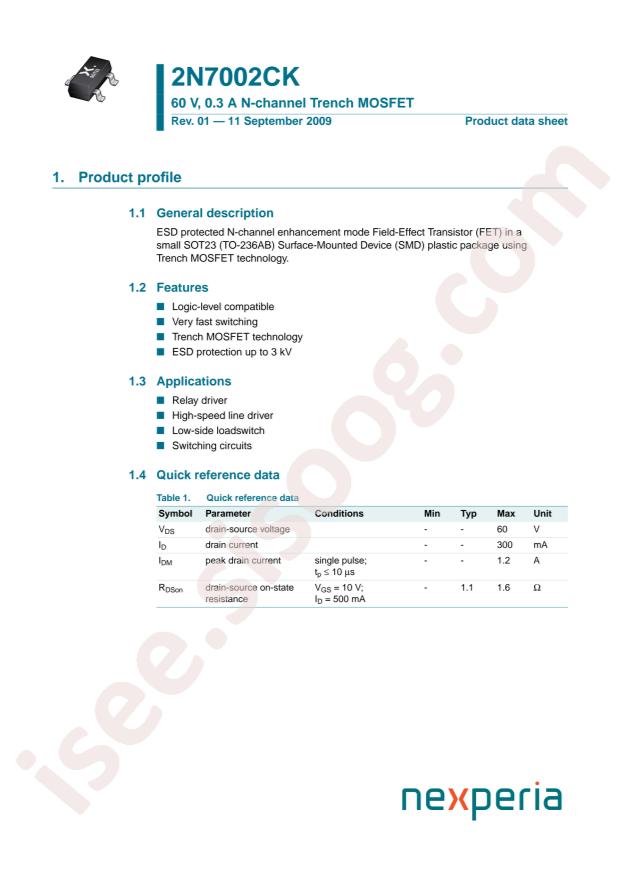

2N7002CK,215 دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
2N7002CK,215
|
|
حجم فایل
|
45.375
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
13
|
مشخصات فنی
-
RoHS:
true
-
Type:
N Channel
-
Category:
Triode/MOS Tube/Transistor/MOSFETs
-
Datasheet:
Nexperia 2N7002CK,215
-
Operating Temperature:
+150°C@(Tj)
-
Power Dissipation (Pd):
350mW
-
Total Gate Charge (Qg@Vgs):
1.09nC@4.5V
-
Drain Source Voltage (Vdss):
60V
-
Input Capacitance (Ciss@Vds):
47.2pF@25V
-
Continuous Drain Current (Id):
300mA
-
Gate Threshold Voltage (Vgs(th)@Id):
1.75V@250uA
-
Reverse Transfer Capacitance (Crss@Vds):
5pF@25V
-
Drain Source On Resistance (RDS(on)@Vgs,Id):
1.1Ω@10V,500mA
-

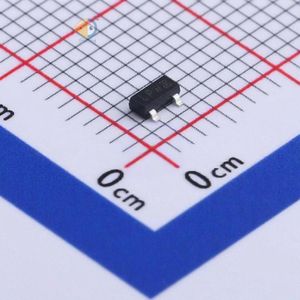

Package:
SOT-23(TO-236)
-
Manufacturer:
Nexperia
