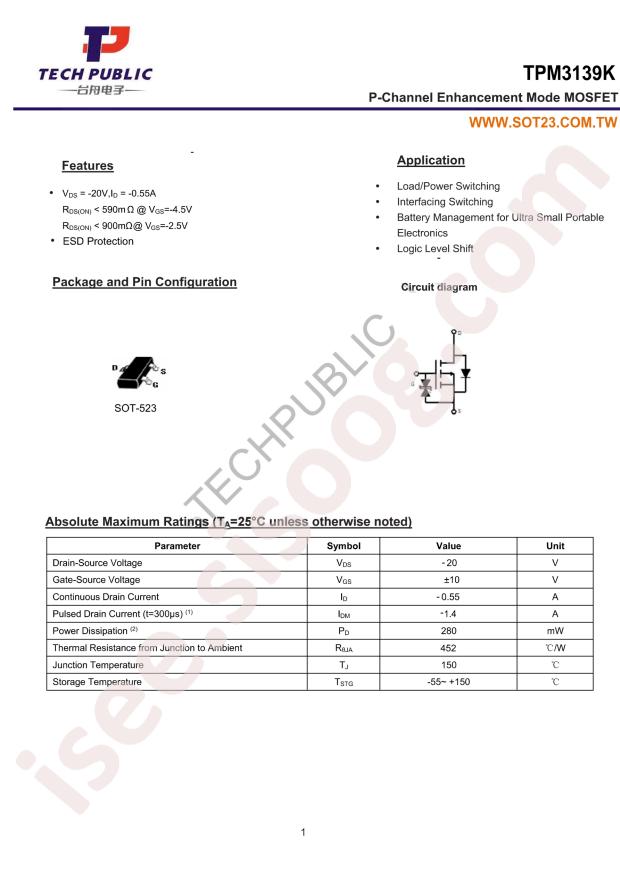

TPM3139K دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
TPM3139K
|
|
حجم فایل
|
55.173
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
3
|
مشخصات فنی
-
RoHS:
true
-
Type:
P Channel
-
Category:
Triode/MOS Tube/Transistor/MOSFETs
-
Datasheet:
TECH PUBLIC TPM3139K
-
Operating Temperature:
+150°C@(Tj)
-
Power Dissipation (Pd):
280mW
-
Total Gate Charge (Qg@Vgs):
-
-
Drain Source Voltage (Vdss):
20V
-
Input Capacitance (Ciss@Vds):
60pF@10V
-
Continuous Drain Current (Id):
550mA
-
Gate Threshold Voltage (Vgs(th)@Id):
750mV@250uA
-
Reverse Transfer Capacitance (Crss@Vds):
5pF@10V
-
Drain Source On Resistance (RDS(on)@Vgs,Id):
590mΩ@4.5V,550mA
-

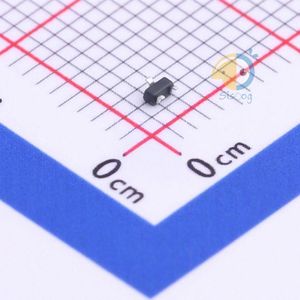

Package:
SOT-523(SC-75)
-
Manufacturer:
TECH PUBLIC
