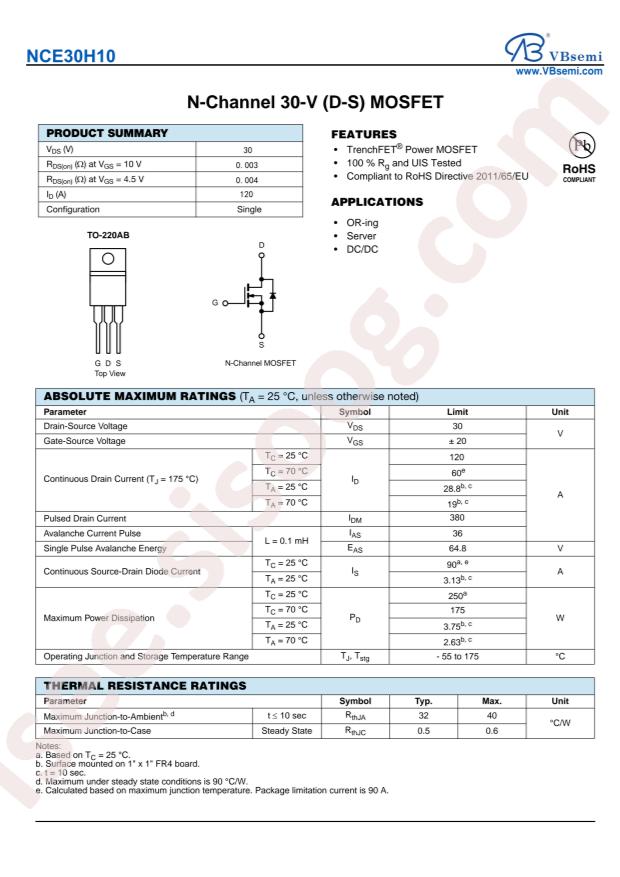

NCE30H10-VB دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
NCE30H10-VB
|
|
حجم فایل
|
74.763
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
7
|
مشخصات فنی
-
RoHS:
true
-
Type:
N Channel
-
Category:
Triode/MOS Tube/Transistor/MOSFETs
-
Datasheet:
VBsemi Elec NCE30H10-VB
-
Operating Temperature:
-55°C~+175°C@(Tj)
-
Power Dissipation (Pd):
250W
-
Total Gate Charge (Qg@Vgs):
81.5nC@4.5V
-
Drain Source Voltage (Vdss):
30V
-
Input Capacitance (Ciss@Vds):
3.165nF@15V
-
Continuous Drain Current (Id):
98A
-
Gate Threshold Voltage (Vgs(th)@Id):
2.5V@250uA
-
Reverse Transfer Capacitance (Crss@Vds):
370pF@15V
-
Drain Source On Resistance (RDS(on)@Vgs,Id):
35mΩ@10V,28.8A
-

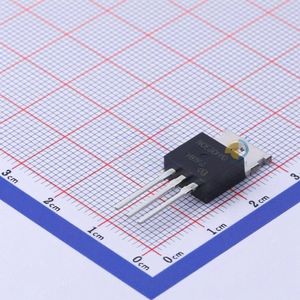

Package:
TO-220
-
Manufacturer:
VBsemi Elec
