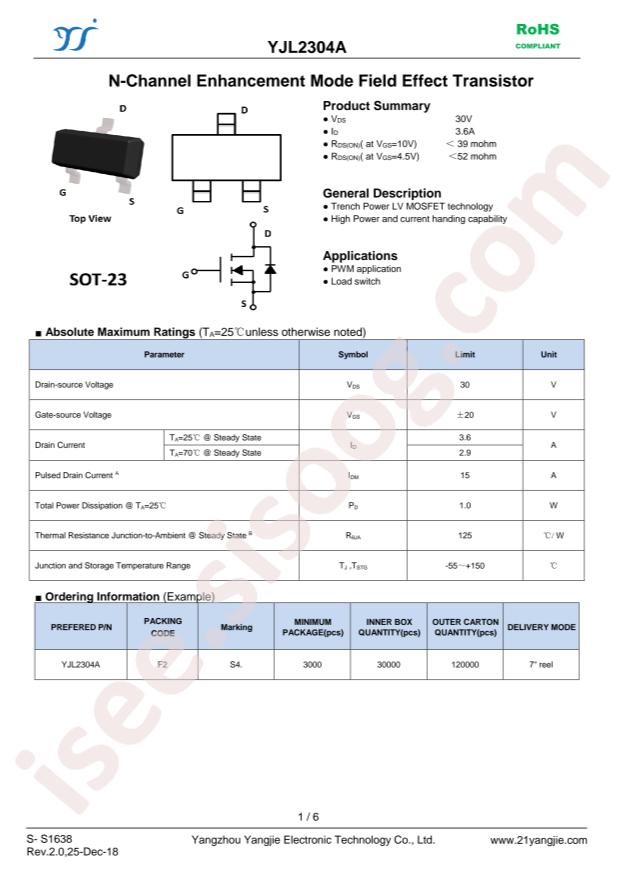

YJL2304A دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|

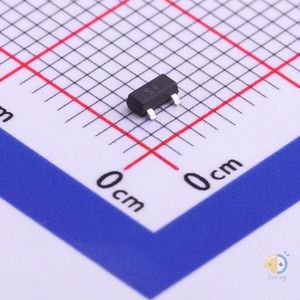

YJL2304A
|
|
حجم فایل
|
61.047
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
6
|
مشخصات فنی
-
RoHS:
true
-
Type:
N Channel
-
Category:
Triode/MOS Tube/Transistor/MOSFETs
-
Datasheet:
Yangzhou Yangjie Elec Tech YJL2304A
-
Operating Temperature:
-55°C~+150°C@(Tj)
-
Power Dissipation (Pd):
1W
-
Total Gate Charge (Qg@Vgs):
4.2nC@10V
-
Drain Source Voltage (Vdss):
30V
-
Input Capacitance (Ciss@Vds):
390pF@15V
-
Continuous Drain Current (Id):
3.6A
-
Gate Threshold Voltage (Vgs(th)@Id):
1.5V@250uA
-
Reverse Transfer Capacitance (Crss@Vds):
41pF@15V
-
Drain Source On Resistance (RDS(on)@Vgs,Id):
30mΩ@10V,3.6A
-
Package:
SOT-23-3L
-
Manufacturer:
Yangzhou Yangjie Elec Tech
