RXEF110K 数据手册
其他文档
未找到其他文档！
技术规格
- RoHS: true
- Category: TVS/Fuse/Board Level Protection/Resettable Fuses

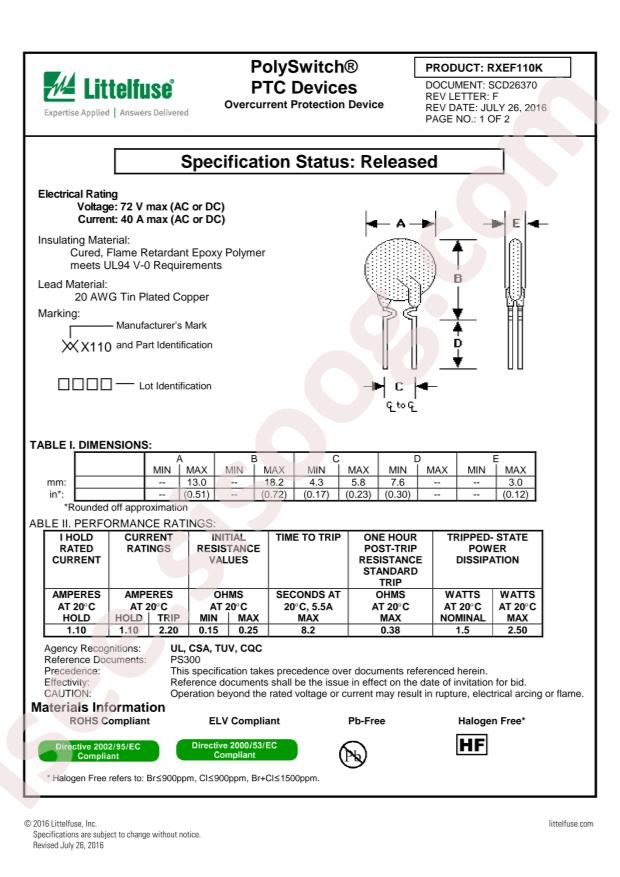

- Datasheet: Littelfuse RXEF110K
- Hold Current: 1.1A
- Trip Current: 2.2A
- Power Dissipation: 1.5W
- Current Rating (Max): 40A
- Maximum Time to Trip: 8.2s
- Operating Temperature: -40°C~+85°C
- Operating Voltage (Max): 72V
- Resistance - Initial (Ri) (Min): 0.15Ω
- Resistance - Post Trip (R1) (Max): 0.38Ω
- Package: Plugin
- Manufacturer: Littelfuse
