WSD90P06DN56 دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
WSD90P06DN56
|
|
حجم فایل
|
71.031
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
5
|
مشخصات فنی
-
RoHS:
true
-
Type:
P Channel
-
Category:
Triode/MOS Tube/Transistor/MOSFETs
-

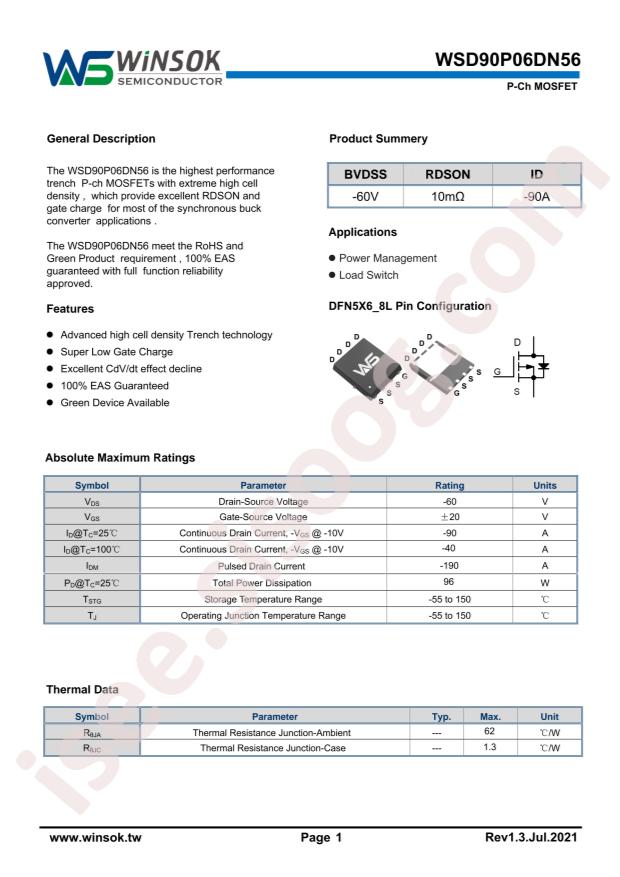

Datasheet:
Winsok Semicon WSD90P06DN56
-
Operating Temperature:
-55°C~+150°C@(Tj)
-
Power Dissipation (Pd):
96W
-
Total Gate Charge (Qg@Vgs):
121nC@10V
-
Drain Source Voltage (Vdss):
60V
-
Input Capacitance (Ciss@Vds):
5.6nF@30V
-
Continuous Drain Current (Id):
90A
-
Gate Threshold Voltage (Vgs(th)@Id):
1.85V@250uA
-
Reverse Transfer Capacitance (Crss@Vds):
480pF@30V
-
Drain Source On Resistance (RDS(on)@Vgs,Id):
10.5mΩ@10V,30A
-

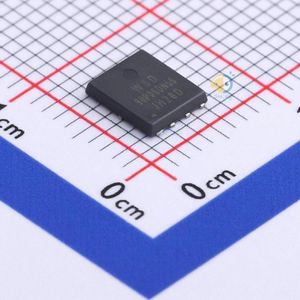

Package:
PDFN-8(4.9x5.8)
-
Manufacturer:
Winsok Semicon
