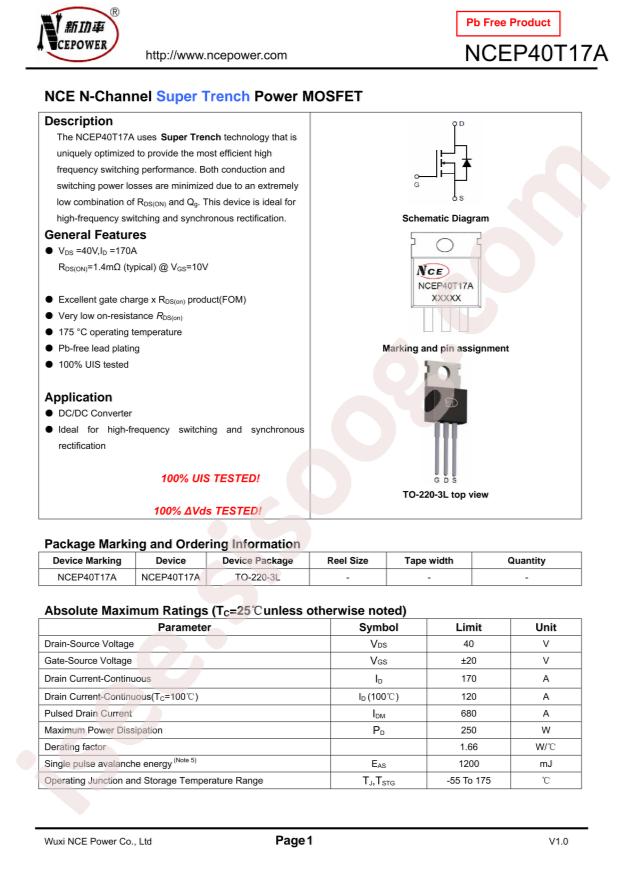

NCEP40T17A دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
NCEP40T17A
|
|
حجم فایل
|
79.238
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
6
|
مشخصات فنی
-
RoHS:
true
-
Type:
N Channel
-
Category:
Triode/MOS Tube/Transistor/MOSFETs
-
Datasheet:
Wuxi NCE Power Semiconductor NCEP40T17A
-
Operating Temperature:
-55°C~+175°C@(Tj)
-
Power Dissipation (Pd):
250W
-
Total Gate Charge (Qg@Vgs):
88.6nC@10V
-
Drain Source Voltage (Vdss):
40V
-
Input Capacitance (Ciss@Vds):
5.67nF@20V
-
Continuous Drain Current (Id):
170A
-
Gate Threshold Voltage (Vgs(th)@Id):
2.5V@250uA
-
Reverse Transfer Capacitance (Crss@Vds):
62pF@20V
-
Drain Source On Resistance (RDS(on)@Vgs,Id):
1.4mΩ@10V,85A
-

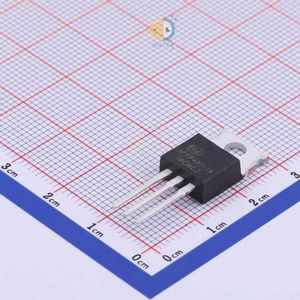

Package:
TO-220
-
Manufacturer:
Wuxi NCE Power Semiconductor
