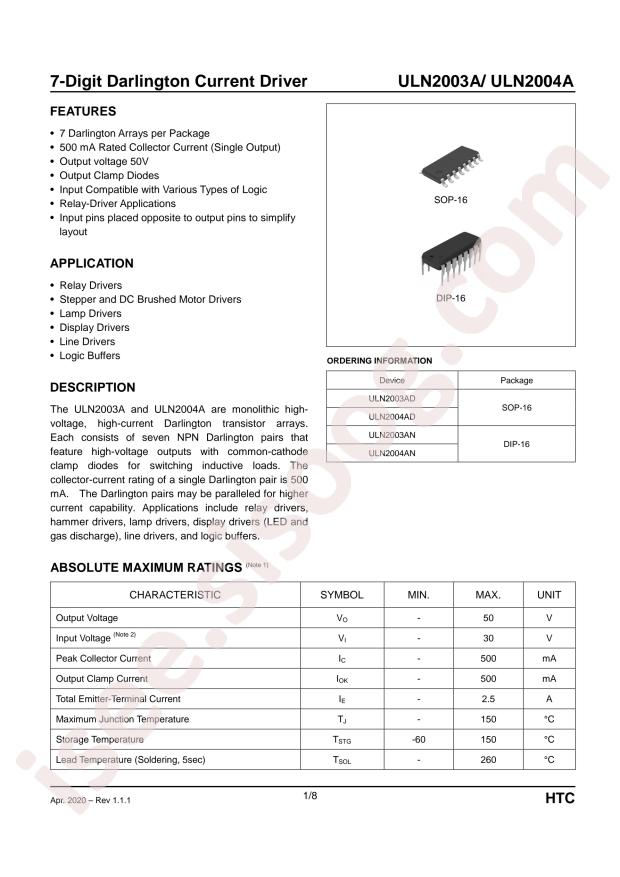

ULN2003AD Datasheet
Datasheet specifications
|
Datasheet's name
|
ULN2003AD
|
|
File size
|
75.788
KB
|
|
File type
|
pdf
|
|
Number of pages
|
8
|
Technical specifications
-
RoHS:
true
-
Category:
Triode/MOS Tube/Transistor/Darlington Transistor Arrays
-
Datasheet:
HTC Korea TAEJIN Tech ULN2003AD
-
Package:
SOP-16
-
Manufacturer:
HTC Korea TAEJIN Tech
-
Input current (Ii@Vi):
-
-
Operating Temperature:
-40°C~+70°C
-
Input Capacitance (Ci):
15pF
-
Output leakage current (Icex@Vce):
50uA@50V
-
Clamp Diode Forward Voltage (VF@IF):
1.7V@350mA
-
Clamp Diode Leakage Current (IR@VR):
50uA@50V
-
ON-state input voltage(VI(on)@Vce,Ic):
3V@2V,300mA
-
Off-state input current (Ii(off)@Vce,Ic):
65uA@50V,500uA
-
Collector-emitter saturation voltage (VCE(sat)@Ii,Ic):
1.2V@500uA,350mA
