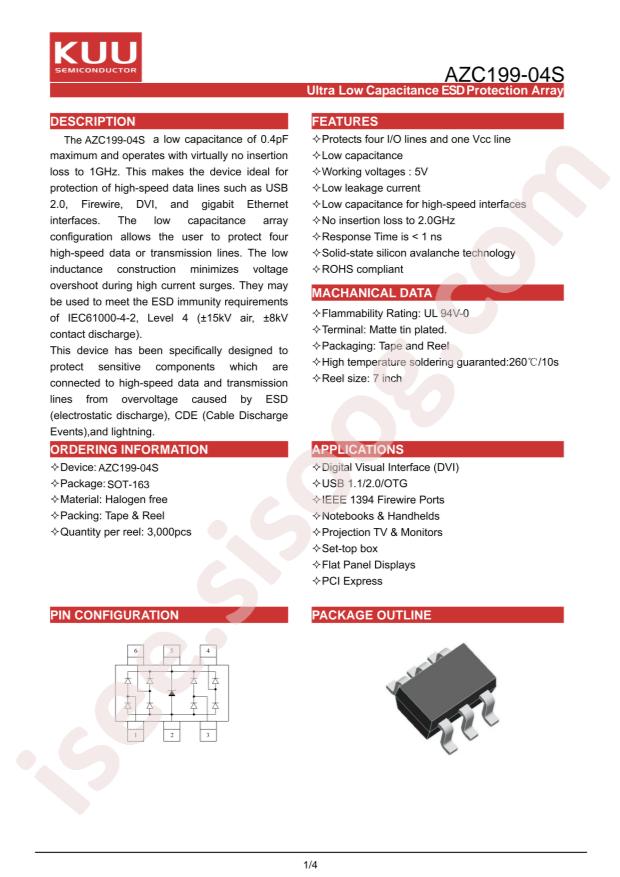

AZC199-04S Datasheet
Datasheet specifications
|
Datasheet's name
|
AZC199-04S
|
|
File size
|
79.348
KB
|
|
File type
|
pdf
|
|
Number of pages
|
4
|
Technical specifications
-
RoHS:
true
-
Category:
TVS/Fuse/Board Level Protection/ESD Protection Devices
-
Datasheet:
TECH PUBLIC AZC199-04S
-
Package:
SOT-23-6
-
Manufacturer:
TECH PUBLIC
-
Polarity:
Unidirectional
-
Number of Lines:
4
-
Clamping Voltage@Ipp:
28V
-
Operating Temperature:
-55°C~+150°C@(Tj)
-
Contact Discharge Vesd:
8kV
-
Breakdown Voltage (VBR):
6V
-
Reverse Leakage Current:
1uA
-
Peak Pulse Power(Ppp)@8/20us:
150W
-
Junction Capacitance(Cj)@1MHz:
0.4pF
-
Peak Pulse Current(Ipp)@8/20us:
5A
-
Reverse Stand-Off Voltage (Vrwm):
5V
