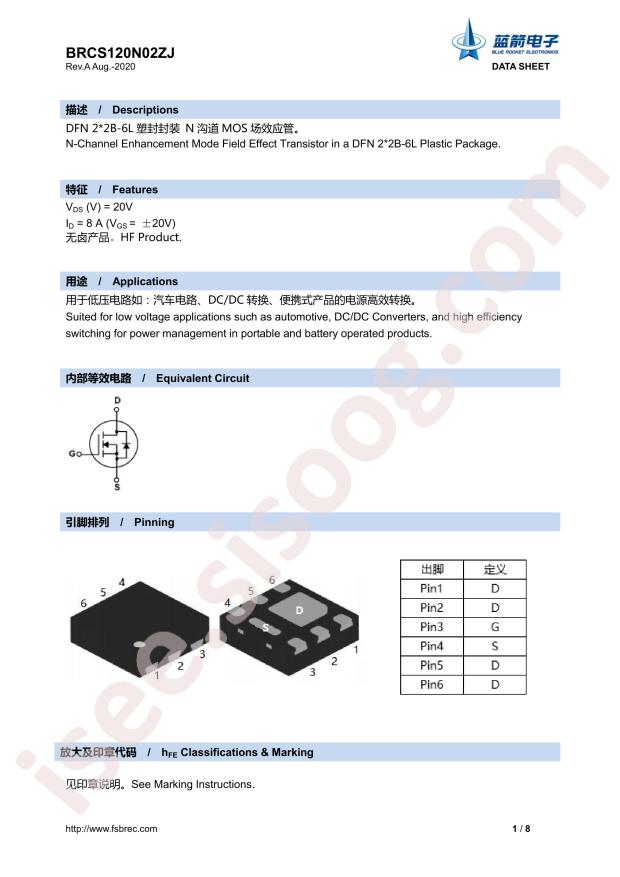

BRCS120N02ZJ دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
BRCS120N02ZJ
|
|
حجم فایل
|
55.757
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
8
|
مشخصات فنی
-
RoHS:
true
-
Type:
N Channel
-
Category:
Triode/MOS Tube/Transistor/MOSFETs
-
Datasheet:
Foshan Blue Rocket Elec BRCS120N02ZJ
-
Operating Temperature:
+150°C@(Tj)
-
Power Dissipation (Pd):
2.8W
-
Total Gate Charge (Qg@Vgs):
-
-
Drain Source Voltage (Vdss):
20V
-
Input Capacitance (Ciss@Vds):
884pF@25V
-
Continuous Drain Current (Id):
8A
-
Gate Threshold Voltage (Vgs(th)@Id):
800mV@250uA
-
Reverse Transfer Capacitance (Crss@Vds):
78pF@25V
-
Drain Source On Resistance (RDS(on)@Vgs,Id):
12.1mΩ@10V,20A
-

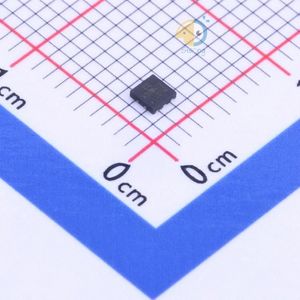

Package:
DFN-6(2x2)
-
Manufacturer:
Foshan Blue Rocket Elec
