SF58-B 数据手册
其他文档
未找到其他文档！
技术规格
- RoHS: true
- Category: Diodes/Diodes - Fast Recovery Rectifiers

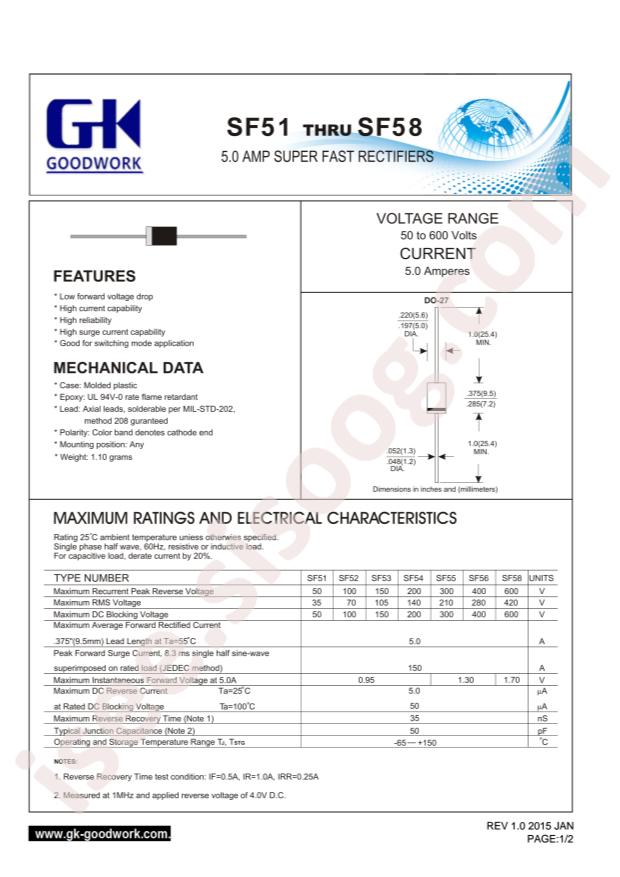

- Datasheet: GOODWORK SF58-B
- Diode Configuration: Single
- Reverse Voltage (Vr): 600V
- Operating Temperature: -65°C~+150°C@(Tj)
- Forward Voltage (Vf@If): 1.7V@5A
- Reverse Leakage Current: 5uA@600V
- Reverse Recovery Time (trr): 35ns
- Average Rectified Current (Io): 5A
- Package: DO-27
- Manufacturer: GOODWORK
