PEMD48,115 دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
PEMD48,115
|
|
حجم فایل
|
51.873
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
17
|
مشخصات فنی
-
RoHS:
true
-
Category:
Triode/MOS Tube/Transistor/Digital Transistors
-
Datasheet:
Nexperia PEMD48,115
-
Input Resistor:
2.2kΩ
-
Resistor Ratio:
21
-
Transistor Type:
1 NPN - Pre-Biased,1 PNP - Pre-Biased
-
Operating Temperature:
+150°C@(Tj)
-
Collector Current (Ic):
100mA
-
Power Dissipation (Pd):
300mW
-
Transition Frequency (fT):
180MHz
-
DC Current Gain (hFE@Ic,Vce):
100@10mA,5V
-
Input Voltage (VI(on)@Ic,Vce):
0.75V@5mA,0.3V
-
Output Voltage (VO(on)@Io/Ii):
-
-
Input Voltage (VI(off)@Ic,Vce):
0.6V@100uA,5V
-
Collector Cut-Off Current (Icbo):
100nA
-
Collector-Emitter Breakdown Voltage (Vceo):
50V
-
Collector-Emitter Saturation Voltage (VCE(sat)@Ic,Ib):
100mV@5mA,0.25mA
-

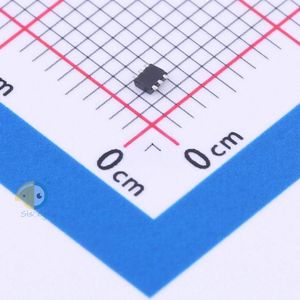

Package:
SOT-666-6
-
Manufacturer:
Nexperia
