EEE-FT1E102UV 数据手册
其他文档
未找到其他文档！
技术规格
- L: 10.8mm
- φD: 10mm
- RoHS: true
- Category: Capacitors/Aluminum Electrolytic Capacitors - SMD

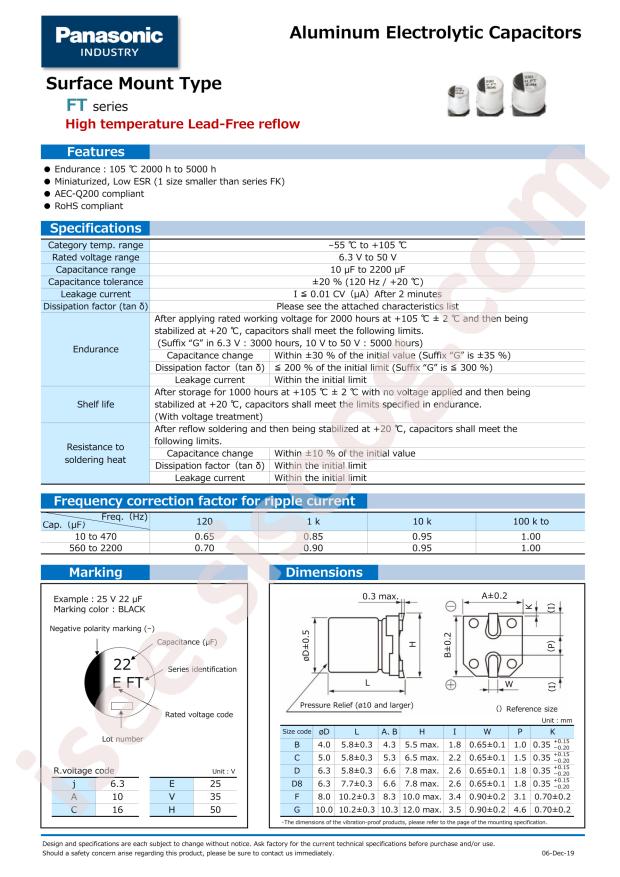

- Datasheet: PANASONIC EEE-FT1E102UV
- Tolerance: ±20%
- Capacitance: 1000uF
- Rated Voltage: 25V
- Ripple Current: 1.19A@100kHz
- Lifetime @ Temp: 2000hrs@105°C
- Operating Temperature: -55°C~+105°C
- Equivalent Series Resistance(ESR): 60mΩ@100kHz
- Package: SMD,D10xL10.5mm
- Manufacturer: PANASONIC
