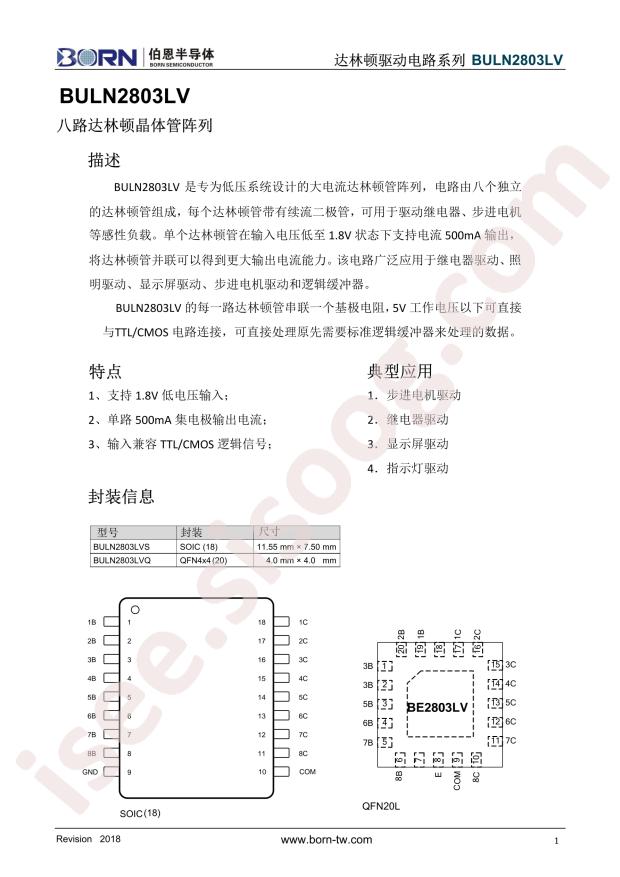

BULN2803LVS دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
BULN2803LVS
|
|
حجم فایل
|
66.339
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
8
|
مشخصات فنی
-
RoHS:
true
-
Category:
Triode/MOS Tube/Transistor/Darlington Transistor Arrays
-
Datasheet:
BORN BULN2803LVS
-
Collector Current(Ic):
500mA
-
Input current (Ii@Vi):
-
-
Operating Temperature:
-40°C~+85°C
-
Input Capacitance (Ci):
15pF
-
Output leakage current (Icex@Vce):
50uA@18V
-
Clamp Diode Forward Voltage (VF@IF):
1.4V@350mA
-
Clamp Diode Leakage Current (IR@VR):
100uA@18V
-
ON-state input voltage(VI(on)@Vce,Ic):
1.8V@1.5V,350mA
-
Off-state input current (Ii(off)@Vce,Ic):
-
-
Collector-emitter saturation voltage (VCE(sat)@Ii,Ic):
1.3V@500mA
-
Package:
SOP-18-300mil
-
Manufacturer:
BORN
