دیتاشیت MC74LCX14DTG
مشخصات دیتاشیت
| نام دیتاشیت |
MC74LCX14DTG
|
| حجم فایل |
70.488
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
8
|
مشخصات
-
RoHS:
true
-
Series:
74LCX
-
Category:
Logic ICs/Inverters
-
Datasheet:
onsemi MC74LCX14DTG
-
Input Type:
Schmitt Trigger
-
Sink Current:
24mA
-
Source Current:
24mA
-
Number of Inputs:
1
-
Number of Circuits:
6
-
Supply Current (Max):
10uA
-
Low level range (VIL):
0.4V~0.6V
-
Max Propagation Delay:
6.5ns@3.3V,50pF
-
Operating Temperature:
-40°C~+85°C
-
High level range (VIH):
1.7V~2.2V
-
Supply Voltage(Single):
2V~3.6V
-

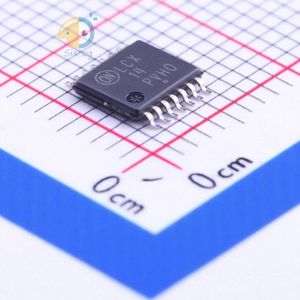

Package:
TSSOP-14
-
Manufacturer:
onsemi
