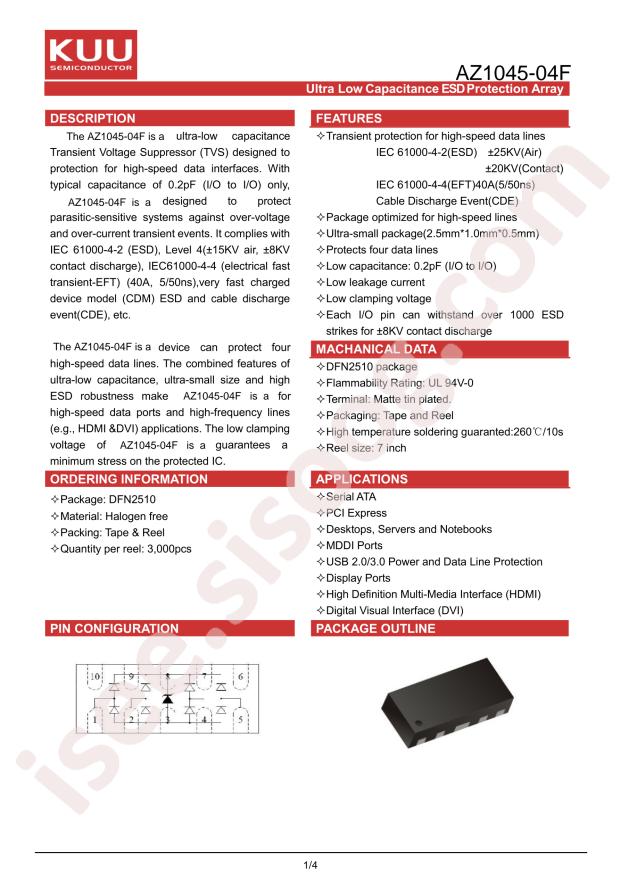

AZ1045-04F Datasheet
Datasheet specifications
|
Datasheet's name
|
AZ1045-04F
|
|
File size
|
95.176
KB
|
|
File type
|
pdf
|
|
Number of pages
|
4
|
Technical specifications
-
RoHS:
true
-
Category:
TVS/Fuse/Board Level Protection/ESD Protection Devices
-
Polarity:
Unidirectional
-
Datasheet:
KUU AZ1045-04F
-
Number of Lines:
4
-
Clamping Voltage@Ipp:
15V
-
Operating Temperature:
-55°C~+125°C@(Tj)
-
Contact Discharge Vesd:
20kV
-
Breakdown Voltage (VBR):
9V
-
Reverse Leakage Current:
1uA
-
Peak Pulse Power(Ppp)@8/20us:
60W
-
Junction Capacitance(Cj)@1MHz:
0.4pF
-
Peak Pulse Current(Ipp)@8/20us:
4A
-
Reverse Stand-Off Voltage (Vrwm):
5V
-
Package:
DFN2510
-
Manufacturer:
KUU
