AP90P03G دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
AP90P03G
|
|
حجم فایل
|
68.942
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
6
|
مشخصات فنی
-
RoHS:
true
-
Type:
P Channel
-
Category:
Triode/MOS Tube/Transistor/MOSFETs
-
Datasheet:
ALLPOWER(ShenZhen Quan Li Semiconductor) AP90P03G
-
Operating Temperature:
+150°C@(Tj)
-
Power Dissipation (Pd):
79W
-
Total Gate Charge (Qg@Vgs):
45nC@10V
-
Drain Source Voltage (Vdss):
30V
-
Input Capacitance (Ciss@Vds):
4320pF@15V
-
Continuous Drain Current (Id):
90A
-
Gate Threshold Voltage (Vgs(th)@Id):
1.5V@250uA
-
Reverse Transfer Capacitance (Crss@Vds):
493pF@15V
-
Drain Source On Resistance (RDS(on)@Vgs,Id):
5.8mΩ@10V,30A
-

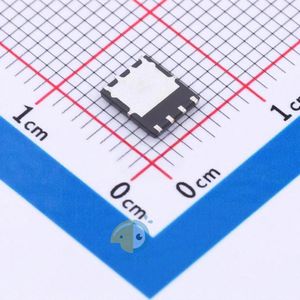

Package:
DFN-8(5x6)
-
Manufacturer:
ALLPOWER(ShenZhen Quan Li Semiconductor)
