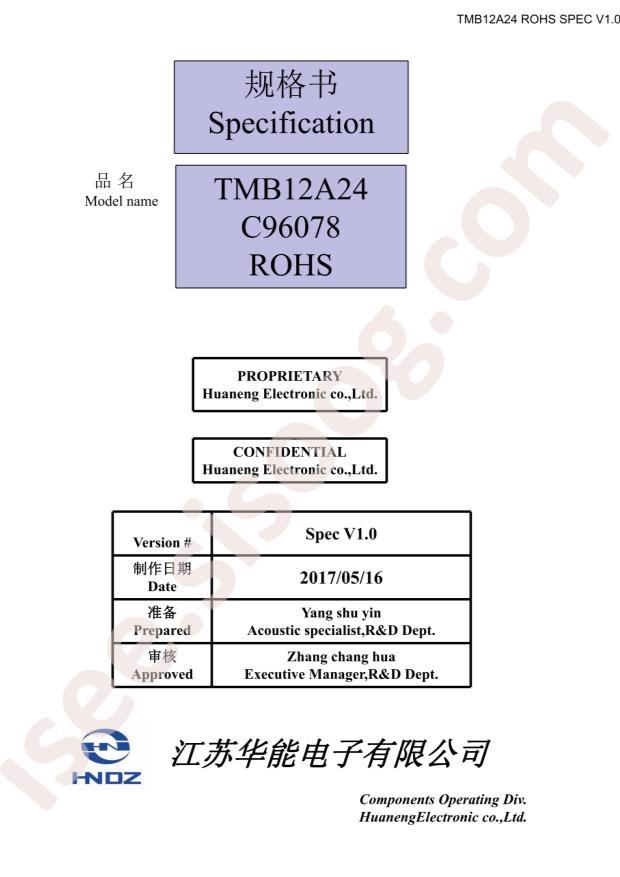

TMB12A24 Datasheet
Datasheet specifications
|
Datasheet's name
|
TMB12A24
|
|
File size
|
52.669
KB
|
|
File type
|
pdf
|
|
Number of pages
|
4
|
Technical specifications
-
RoHS:
true
-
Height:
9.8mm
-
Category:
Audio Components/Vibration Motors/Buzzers
-
Datasheet:
Jiangsu Huaneng Elec TMB12A24
-
Frequency:
2300Hz
-
Rated Voltage:
24V
-
Diameter (φD):
12mm
-
Technology Type:
Magnetic
-
Operating Voltage:
18V~26V
-
Oscillator Circuit:
Active (driven circuit included)
-
Sound Pressure Level (SPL):
85dB@24V,10cm
-
Package:
Plugin,D=12mm
-
Manufacturer:
Jiangsu Huaneng Elec
-
Width:
-
-
Length:
-
-
Current Consumption:
30mA
-
Operating Temperature:
-30°C~+85°C
