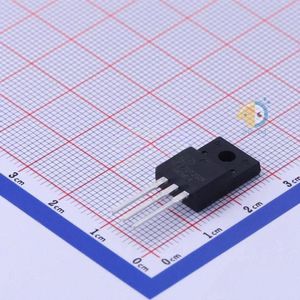

NCE70T260F دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
NCE70T260F
|
|
حجم فایل
|
86.44
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
10
|
مشخصات فنی
-
RoHS:
true
-
Type:
N Channel
-
Category:
Triode/MOS Tube/Transistor/MOSFETs
-

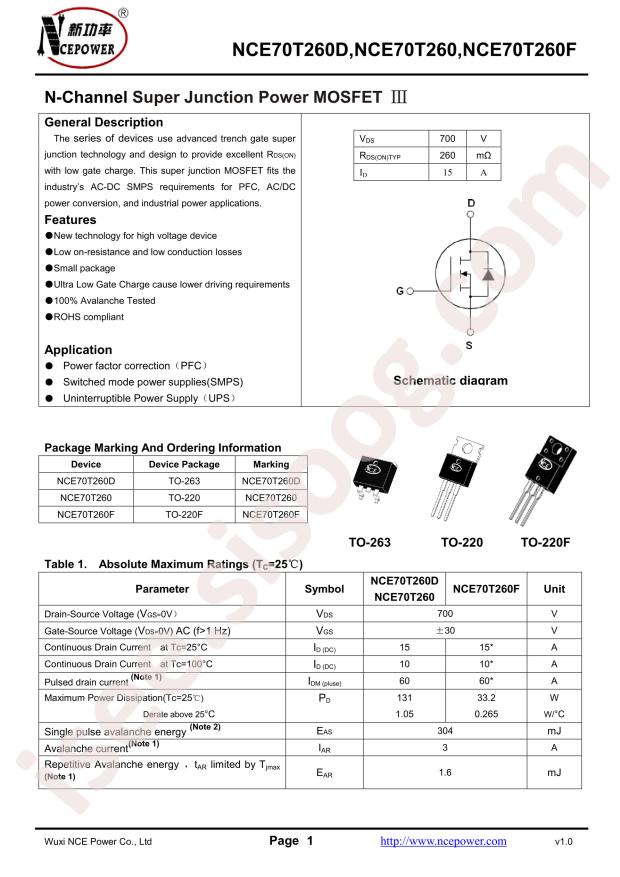

Datasheet:
Wuxi NCE Power Semiconductor NCE70T260F
-
Operating Temperature:
-55°C~+150°C@(Tj)
-
Power Dissipation (Pd):
33.2W
-
Total Gate Charge (Qg@Vgs):
24.7nC@10V
-
Drain Source Voltage (Vdss):
700V
-
Input Capacitance (Ciss@Vds):
1.21nF@50V
-
Continuous Drain Current (Id):
15A
-
Gate Threshold Voltage (Vgs(th)@Id):
3.5V@250uA
-
Reverse Transfer Capacitance (Crss@Vds):
0.2pF@50V
-
Drain Source On Resistance (RDS(on)@Vgs,Id):
260mΩ@10V,8A
-
Package:
TO-220F
-
Manufacturer:
Wuxi NCE Power Semiconductor
