دیتاشیت SMCJ20A

SMCJ20A

مشخصات دیتاشیت

نام دیتاشیت SMCJ20A
حجم فایل 95.512 کیلوبایت
نوع فایل pdf
تعداد صفحات 6

دانلود دیتاشیت SMCJ20A

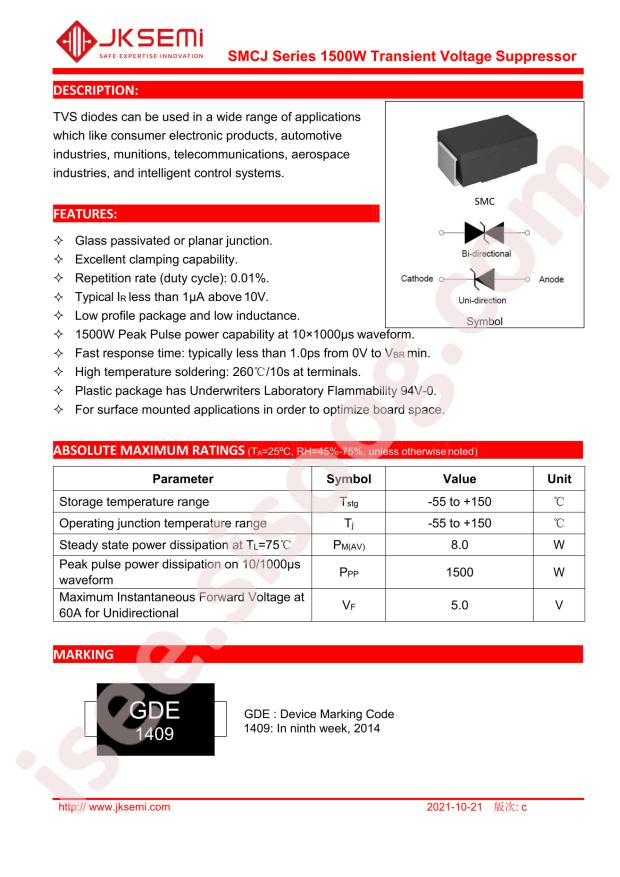

SMCJ20A Datasheet

مشخصات

  • RoHS: true
  • Category: TVS/Fuse/Board Level Protection/TVS
  • Datasheet: MDD(Microdiode Electronics) SMCJ20A
  • Breakdown Voltage: 22.2V
  • Maximum Clamping Voltage: 32.4V
  • Reverse Leakage Current (Ir): 1uA
  • Reverse Stand-Off Voltage (Vrwm): 20V
  • Peak Pulse Current (Ipp)@10/1000us: 46.3A
  • Package: SMC(DO-214AB)
  • Manufacturer: MDD(Microdiode Electronics)
  • Peak Pulse Power Dissipation (Ppp)@10/1000us: 1500W
  • Bidirectional Channels: 0
  • Unidirectional Channels: 1
  • Peak Pulse Current (Ipp)@10/1000μs: 46.3A
  • Peak Pulse Power Dissipation (Ppp)@10/1000μs: 1.5kW
