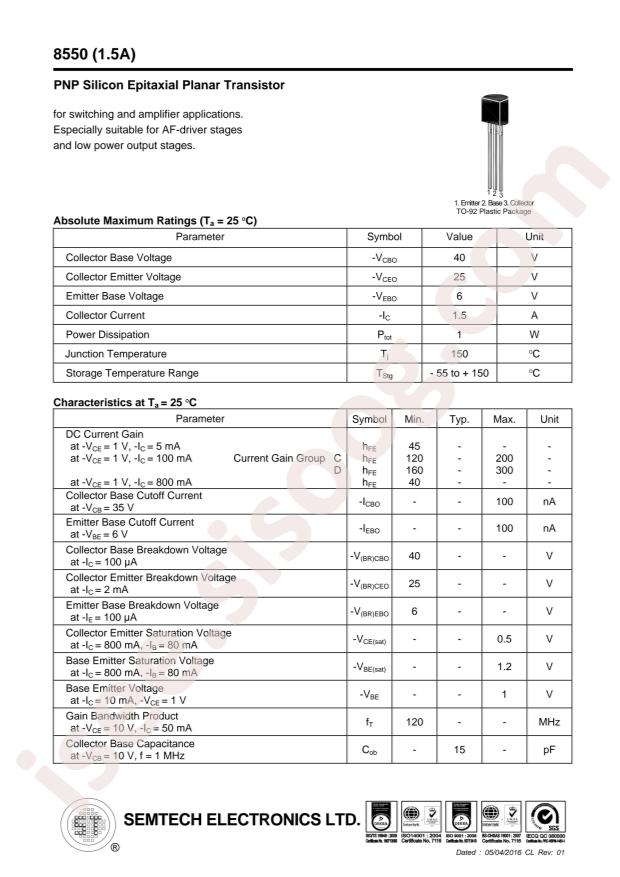

8550D(1.5A) 数据手册
其他文档
8550D(1.5A) 2 pages
技术规格
- RoHS: true
- Category: Triode/MOS Tube/Transistor/Bipolar Transistors - BJT
- Datasheet: ST(Semtech) 8550D(1.5A)
- Transistor Type: PNP
- Operating Temperature: +150°C@(Tj)
- Collector Current (Ic): 1.5A
- Power Dissipation (Pd): 1W
- Transition Frequency (fT): 120MHz
- DC Current Gain (hFE@Ic,Vce): 160@100mA,1V
- Collector Cut-Off Current (Icbo): 100nA
- Collector-Emitter Breakdown Voltage (Vceo): 25V
- Collector-Emitter Saturation Voltage (VCE(sat)@Ic,Ib): 500mV@800mA,80mA
- Package: TO-92-3
- Manufacturer: ST(Semtech)
