PT23T3904 دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
PT23T3904
|
|
حجم فایل
|
64.674
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
5
|
مشخصات فنی
-
RoHS:
true
-
Category:
Triode/MOS Tube/Transistor/Bipolar Transistors - BJT
-
Datasheet:
Shanghai Prisemi Elec PT23T3904
-
Transistor Type:
NPN
-
Operating Temperature:
-55°C~+150°C@(Tj)
-
Collector Current (Ic):
200mA
-
Power Dissipation (Pd):
150mW
-
Transition Frequency (fT):
300MHz
-
DC Current Gain (hFE@Ic,Vce):
100@10mA,1V
-
Collector Cut-Off Current (Icbo):
-
-
Collector-Emitter Breakdown Voltage (Vceo):
40V
-
Collector-Emitter Saturation Voltage (VCE(sat)@Ic,Ib):
300mV@50mA,5mA
-

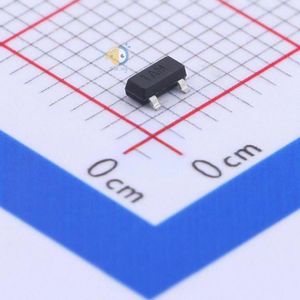

Package:
SOT-23(TO-236)
-
Manufacturer:
Shanghai Prisemi Elec
